- Proven design – maintenance and service-free
- High tensile steel rods – plated for corrosion resistance
- Manufactured in the USA – highest quality assured
Options
Piston rod available in stainless steel - Any cylinder can be ordered complete with clevis and pins
- Spring return cylinders are also available
- Various stroke lengths available upon request
- Low-temperature seals
Tailgate Latch
Tailgate Series

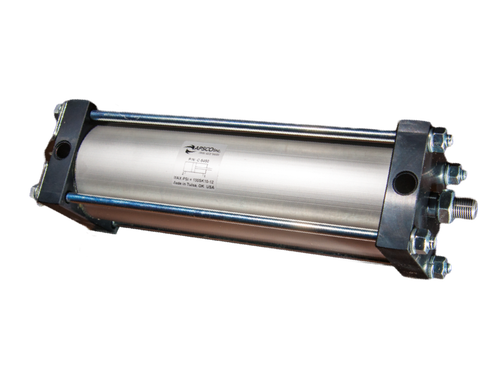

From the beginning, APSCO products have been designed and manufactured for the heavy truck and mobile equipment industries. Our tailgate latch cylinders are no exception. In today’s tailgate locking applications, a stable, reliable, and fast latch is mandatory. More drivers, manufacturers, and distributors are counting on APSCO tailgate latch kits to ensure a quick and strong latching or unlatching of the tailgate. Operators have peace of mind that their cylinders will remain durable over time and in harsh environments.
With a variety of strokes and bores to fit nearly any body or trailer, APSCO tailgate latch cylinders have become the leader in the industry for OEMs, aftermarket and replacement parts.
APSCO valve and fitting kits are available for all cylinders, making installation efficient and easy.
Watch Video Is your tailgate valve leaking air in your cab?
|
CYLINDER PART # |
DESCRIPTION |
BORE |
STROKE |
PORT |
P-ROD THREAD |
FORCE @ 100 PSI |
SEAL KIT # |
DRAWINGS |
|---|---|---|---|---|---|---|---|---|
|
C-5103-SR |
CYL 2.5 X 3 SR 10 BR |
2.50 |
3.00 |
1/4 NPT |
5/8-18 |
487 |
SK-2609 | Drawing |
|
C-5180S |
CYL. 2.5 X 4 DA 10 BR |
2.50 |
4.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5078-PK |
CYL 2.50 X 4.00 SE 8 BR with Clevis |
2.50 |
4.00 |
1/4 NPT |
1/2 - 20 |
378 |
SK-2609 | Drawing |
|
C-5026-PK |
CYL. 2.5 X 6 DA 10 BR |
2.50 |
6.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5026S-PK |
CYL. 2.5 X 6 DA 10 BR |
2.50 |
6.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5091 |
CYL. 2.5 X 6 SE |
2.50 |
6.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5097-SE-PK |
CYL. 2.5 X 6 SE 10 BR PK |
2.50 |
6.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5063 |
CYL 2.5 X 6 SR 10 BR |
2.5 |
6.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5075-PK |
CYL. 2.5 X 7.5 DA 10 BR |
2.50 |
7.50 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5070 |
CYL. 2.5 X 8 DA 10 BR |
2.50 |
8.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5070-PK |
CYL. 2.5 X 8 DA 10 BR |
2.50 |
8.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5070S |
CYL. 2.5 X 8 DA 10 BR |
2.50 |
8.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5072 |
CYL. 2.5 X 8 DA 10 BR |
2.50 |
8.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5094 |
CYL. 2.5 X 8 DA 10 BR |
2.50 |
8.00 |
1/4 NPT |
5/8-18 |
490 |
SK-2609 | Drawing |
|
C-5450 |
CYL. 2.5 X 8 DA 8 BR |
2.50 |
8.00 |
1/4 NPT |
1/2-20 |
490 |
SK-3107 | Drawing |
|
C-5080 |
CYL. 2.5 X 10 DA 8 BR |
2.50" |
10.00" |
1/4 NPT |
5/8"-18 |
490 |
SK-2609 | Drawing |
|
C-5081-PK |
CYL. 2.5 X10 DA 10 BR |
2.50" |
10.00" |
1/4 NPT |
5/8"-18 |
490 |
SK-2609 | Drawing |
|
C-5331-PK |
CYL. 2.5 X 14 DA 8 BR |
2.50" |
14.00" |
1/4 NPT |
5/8"-18 |
490 |
SK-2609 | Drawing |
|
C-6101-SR-PK |
CYL 3.5 X 3.0 SR 12 PK |
3.5 |
3.00 |
1/4 NPT |
5/8"-18 |
974 |
SK-1779 | Drawing |
|
C-6203-SR |
CYL 3.5 X 3.0 SR 10 BR |
3.5 |
3.00 |
1/4 NPT |
5/8-18 |
986 |
SK-5482 | Drawing |
|
C-6103-PK |
CYL 3.5 X 4 DA 16 BR PK |
3.5 |
4.00 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6097-PK |
CYL. 3.5 X 5.75 DA 16NS BR PK |
3.50 |
5.75 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6053S-PK |
CYL. 3.5 X 6.00 DA 10 BR |
3.50 |
6.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6057-PK |
CYL. 3.5 X 6 DA 10 BR |
3.50 |
6.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6063 |
CYL. 3.5 X 6 DA 12NC BE |
3.50 |
6.00 |
1/4 NPT |
3/4-10 |
962 |
SK-1779 | Drawing |
|
C-6084-PK |
CYL. 3.5 X 6 DA 10 BR |
3.50 |
6.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6086-PK |
CYL. 3.5 X 6 DA 16NS BR |
3.50 |
6.00 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6102-P |
CYL 3.5 X 6 DA 12 BR P |
3.5 |
6.00 |
1/4 NPT |
3/4-16 |
962 |
SK-3037 | Drawing |
|
C-6004 |
CYL. 3.5 X 8 DA 12NC BE |
3.50 |
8.00 |
1/4 NPT |
3/4-10 |
962 |
SK-3037 | Drawing |
|
C-6009-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6011-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6023-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6023S-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6059-F-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6059-E-PK |
CYL. 3.5 X 8.00 DA 10 BR W/ ELECTRIC SOLENOID |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6080 |
CYL. 3.5 X 8 DA 12 NC BE |
3.50 |
8.00 |
1/4 NPT |
3/4-10 |
962 |
SK-1779 | Drawing |
|
C-6068-PK |
CYL 3.5 X 8 DA 8 BR PK |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6081-PK |
CYL. 3.5 X 8 DA 16NS BR |
3.50 |
8.00 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6089-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6090-PK |
CYL. 3.5 X 8.00 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6093-PK |
CYL. 3.5 X 8 DA 10 BR |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6096-E-WP-PK |
CYL. 3.5 X 8 DA 16NS BR PK |
3.50 |
8.00 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6096-PK |
CYL. 3.5 X 8 DA 16NS BR PK |
3.50 |
8.00 |
1/4 NPT |
1-14 |
962 |
SK-3037 | Drawing |
|
C-6318-PK |
CYL. 3.5 X 8 DA 10 BR PK |
3.50 |
8.00 |
1/4 NPT |
5/8-18 |
962 |
SK-1779 | Drawing |
|
C-6010 |
CYL. 3.5 X 10.00 DA 10 BR |
3.50" |
10.00" |
1/4 NPT |
5/8"-18 |
962 |
SK-1779 | Drawing |
|
C-0410-SR |
CYL. 4 X 4.6 SR TR |
4.00 |
4.60 |
1/4 NPT |
3/4-16 |
285 | Drawing | |
|
C-0411-SR |
CYL. 4 X 4.6 SR TR |
4.00 |
4.60 |
3/8 NPT |
3/4-16 |
661 | Drawing | |
|
C-0406-PK |
CYL 4 X 6 DA 16 BR PK |
4.00" |
6.00" |
1/2 NPT |
1-14 |
1257 |
SK-5361 | Drawing |
|
Tailgate Latch Parts Key |
|---|
|
1 = 1.0" Pins |
