PART # |
DESCRIPTION |
WHERE USED |
RATING |
SUPPORT |
|---|---|---|---|---|
|
EC-PTO |
Kit |
Master Kit | Image | |
|
5799 |
PRESSURE SWITCH (1/8 NPT) |
EC-PTO |
Normally Open, MAWP = 145 psi, n8.33 amps @ 12V DC |
Image |
|
WH-EC-PTO |
WIRING HARNESS (15 FT) |
EC-PTO | ||
|
1707 |
1/4 DOT TUBE X 1/4" LONG |
EC-PTO | ||
|
4424 |
FITTING, 1/4 TUBE X 1/8 FNPT |
EC-PTO |

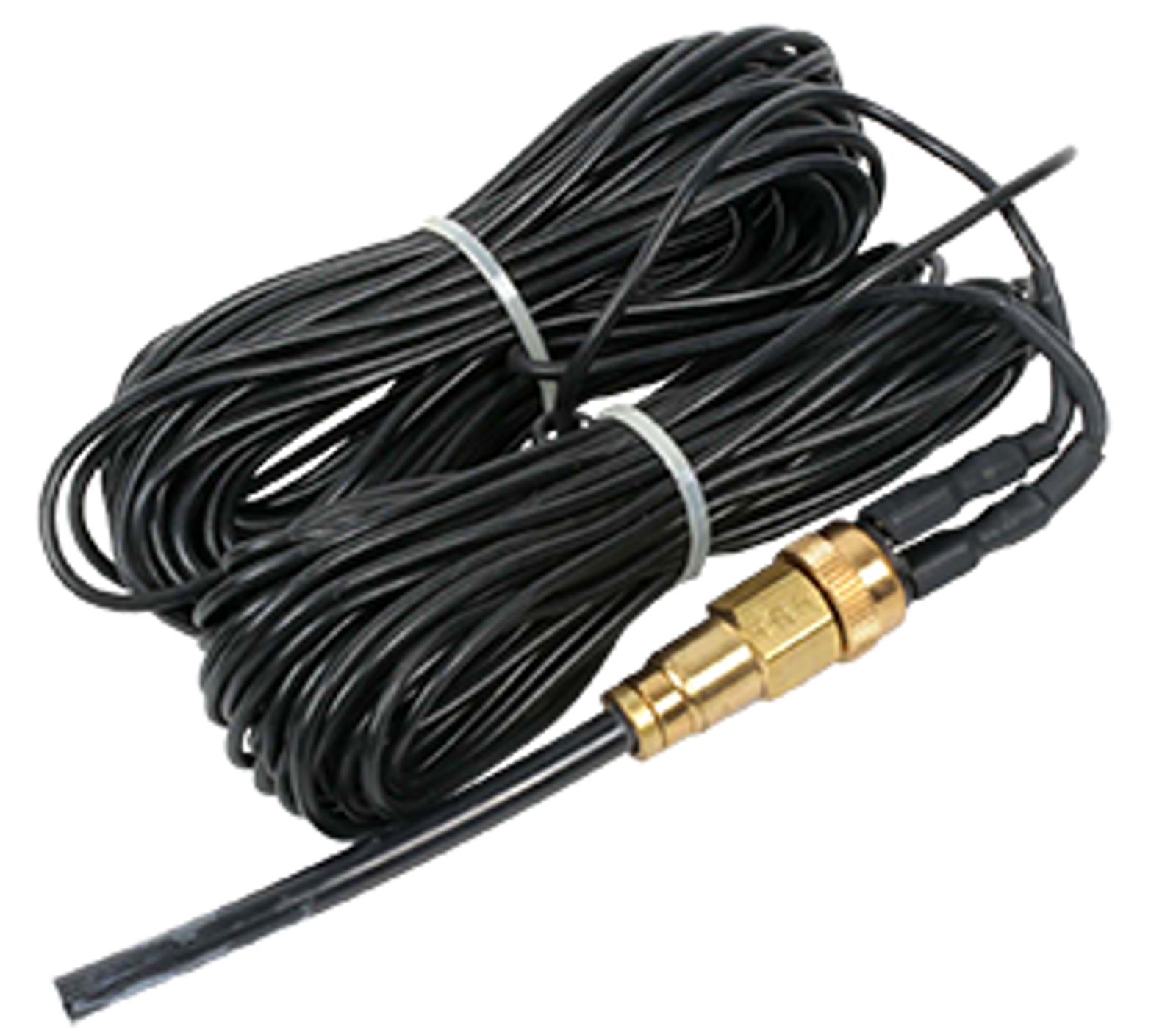

Air-to-Electric Kit
Air-to-Electric Kit = p/n EC-PTO
Paired with APSCO’s AV-295 valve the EC-PTO converts the pneumatic PTO output to an electric signal.
The EC-PTO kit allows for fully integrated hoist/PTO control for hot shift PTO’s.
Hot shift PTO’s can now be automatically “kicked out” when hoists are lowered using the APSCO EC-PTO kit.
