Air Toggle Valves
Browse APSCO’s selection of high-quality air toggle valves for a variety of applications.
|
PART # |
DESCRIPTION |
MOUNTING |
POSITIONS |
ACTION |
PORTS |
WIDTH |
BODY LENG. |
TOTAL LENG. |
DEPTH |
SUPPLY |
CYL. TYPE |
SUPPORT |
IMAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

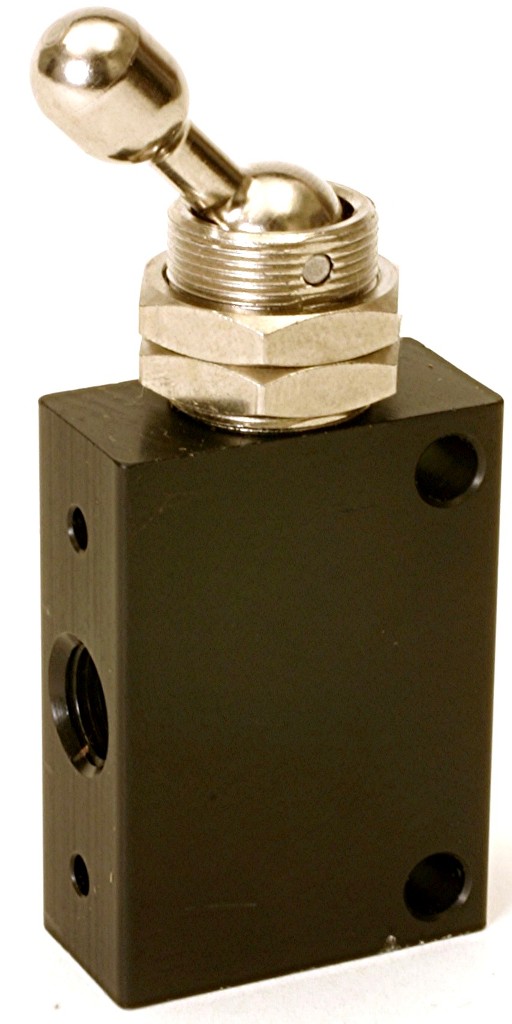

VTS-2 |
2-position, 4-Way |
5/8" Bulkhead |
ON/OFF |
Toggle |
1/8" NPT ports |
1.25" |
1.75" |
1.25" |
.63" |
125 |
D.A | Image | |
|
VTS-2X |
2-position, 4-Way |
5/8" Bulkhead |
ON/OFF |
Toggle |
1/8" NPT ports |
1.50" |
1.75" |
3.00" |
1.50" |
0.125 |
D.A | Drawing | |
|
VTS-21 |
3-position, 4-Way |
5/8" Bulkhead |
FD/N/M |
Toggle |
1/8" NPT ports |
.88" |
1.06" |
2.44" |
.63" |
125 |
S.C | ||
|
VTS-29 |
3-position, 4-Way |
5/8" Bulkhead |
FD/N/FD |
Toggle |
1/8" NPT ports |
.88" |
1.06" |
2.44" |
.63" |
125 |
S.C | ||
|

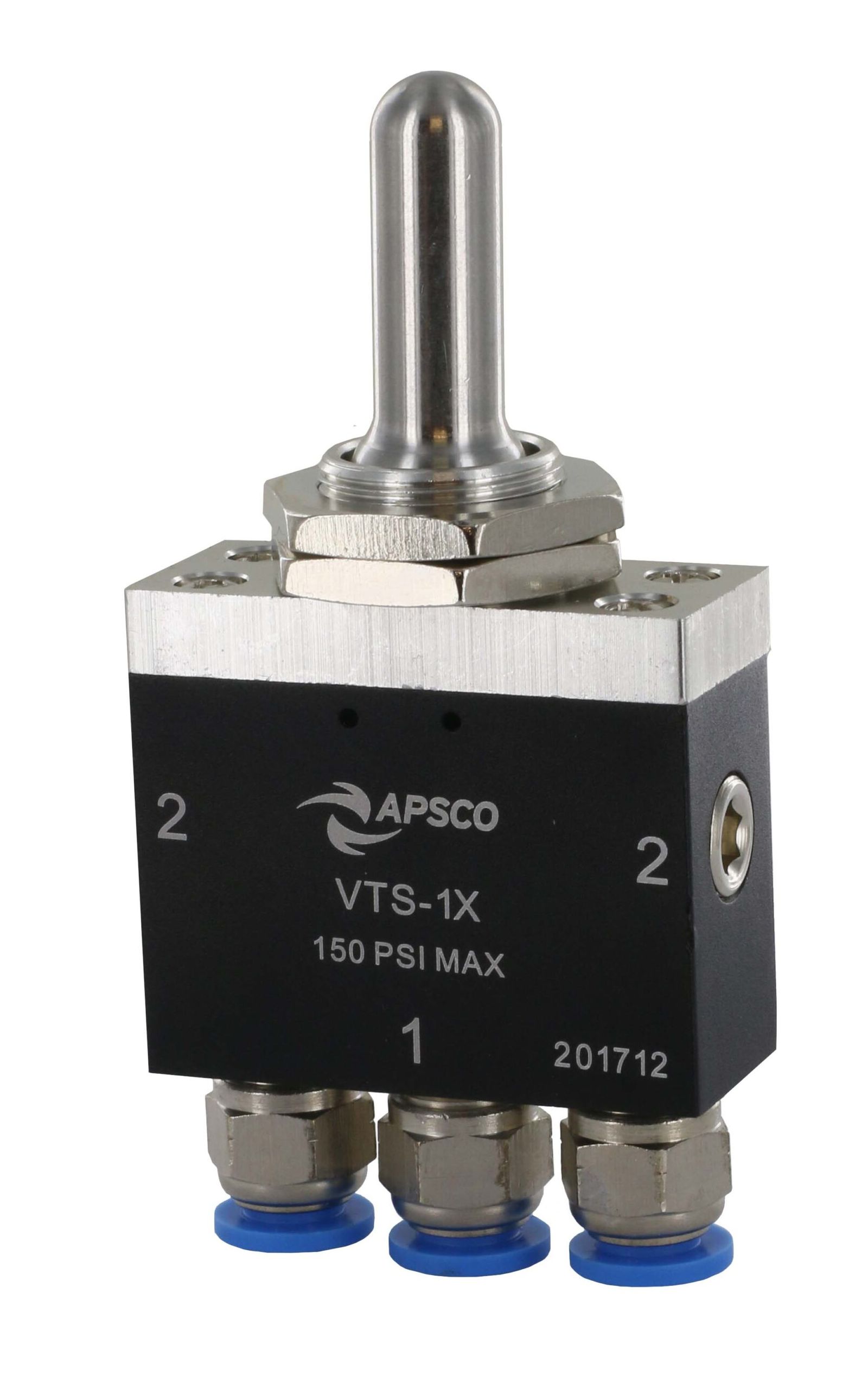

VTS-1X |
3-position, 4-Way |
3/4" Bulkhead |
M/N/M |
Toggle |
1/8" NPT ports |
1.81" |
1.51" |
3.00" |
.75" |
125 |
S.C | Drawing | Image |
|
VTS-9X |
3-position, 4-Way |
3/4" Bulkhead |
FD/N/FD |
Toggle |
1/8" NPT ports |
1.81" |
1.51" |
3.00" |
.75" |
125 |
S.C | Drawing | Image |
|

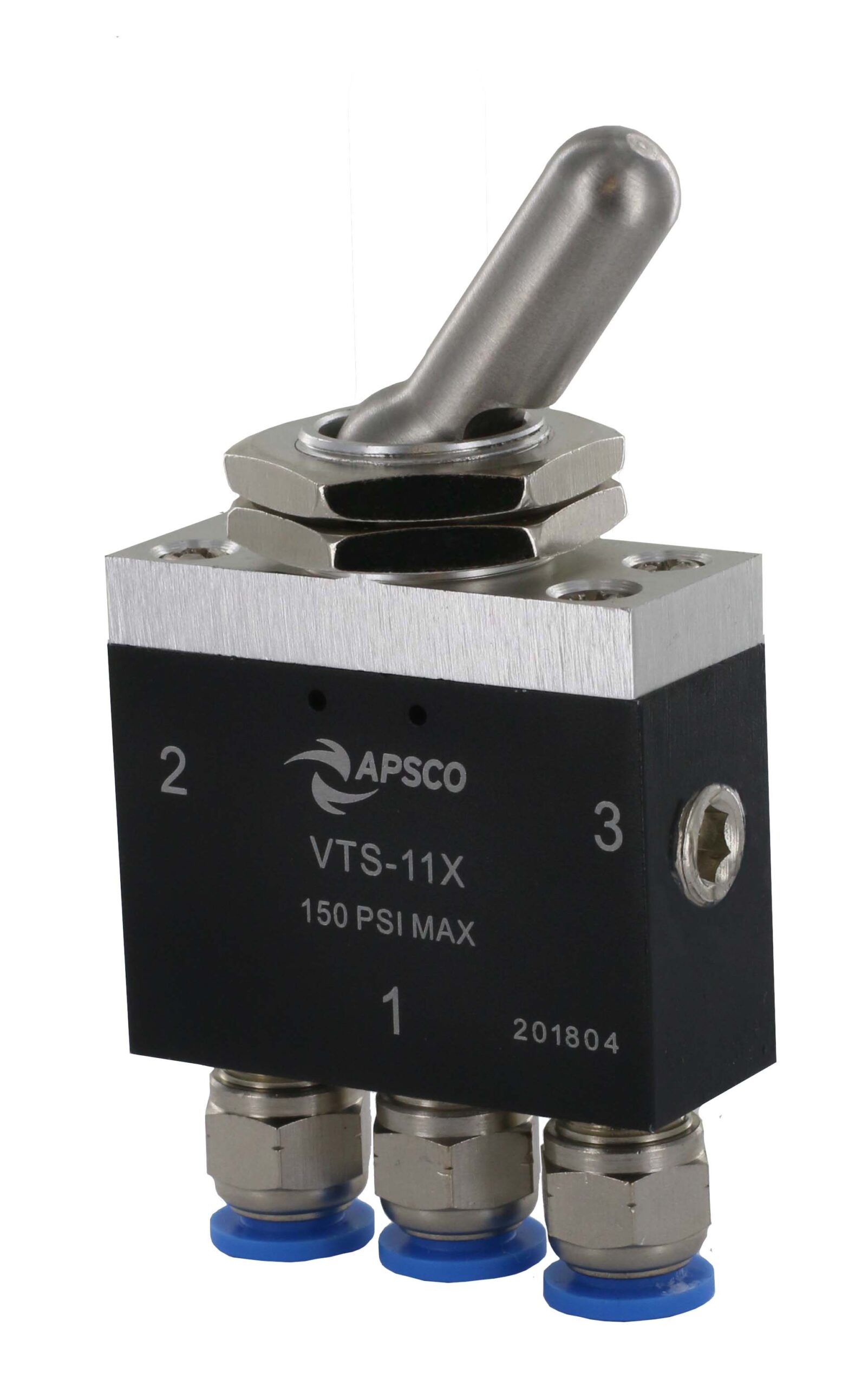

VTS-11X |
3-position, 4-Way |
3/4" Bulkhead |
FD/N/M |
Toggle |
1/8" NPT ports |
1.81" |
1.51" |
3.00" |
.75" |
125 |
S.C | Drawing | Image |
|
4141 |
3-position, 4-Way |
15/32" Bulkhead |
M/N/M |
Toggle |
1/8" NPT ports |
.88" |
1.06" |
2.44" |
.63" |
125 |
S.C | ||
|
4770 |
2-position, 4-Way |
15/32" Bulkhead |
ON/OFF |
Toggle |
1/8" NPT ports |
1.25" |
1.67" |
2.73" |
.63" |
125 |
D.A | ||
|
4883 |
Guard - 5/8" |
5/8" Opening | |||||||||||
|
6075 |
Guard - 3/4" |
3/4" Opening |
