Watch Video APSCO Airshift Comparison
Push-Pull 3-Way

Browse APSCO’s selection of high-quality air toggle valves for a variety of applications.
PART # |
DESCRIPTION |
MOUNTING |
ACTION |
PORT |
WIDTH |
BODY LENGTH |
DEPTH |
SUPPLY |
CYL. TYPE |
SUPPORT |
IMAGE | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

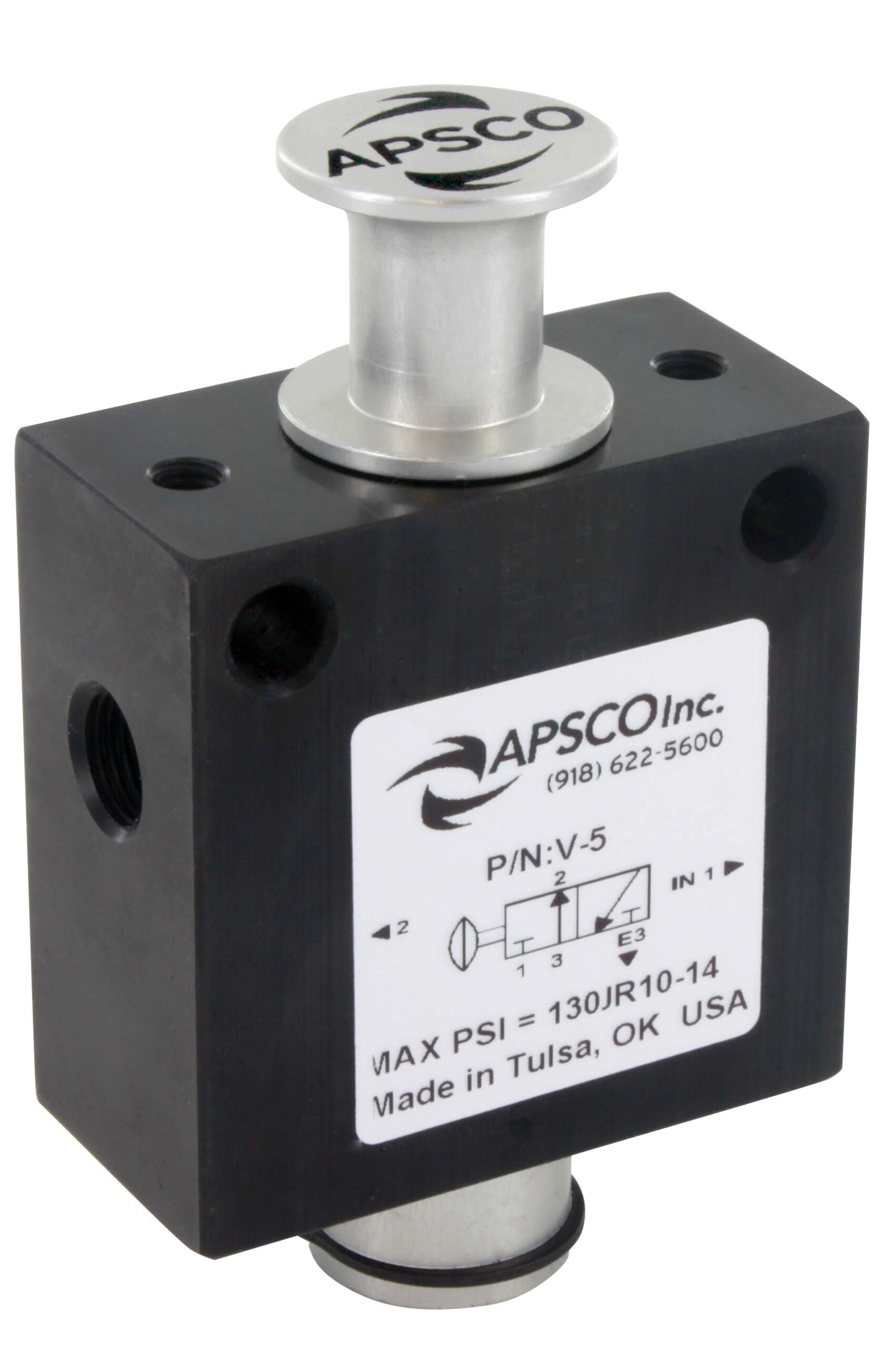

V-5 |
2-position, single spool, 3-way |
2 threaded 10-32 UNFvertical .2 thru holes horizontal |
Push/Pull |
1/8" |
2.00" |
2.00" |
1.00" |
130 |
S.A. | Drawing | Image | |

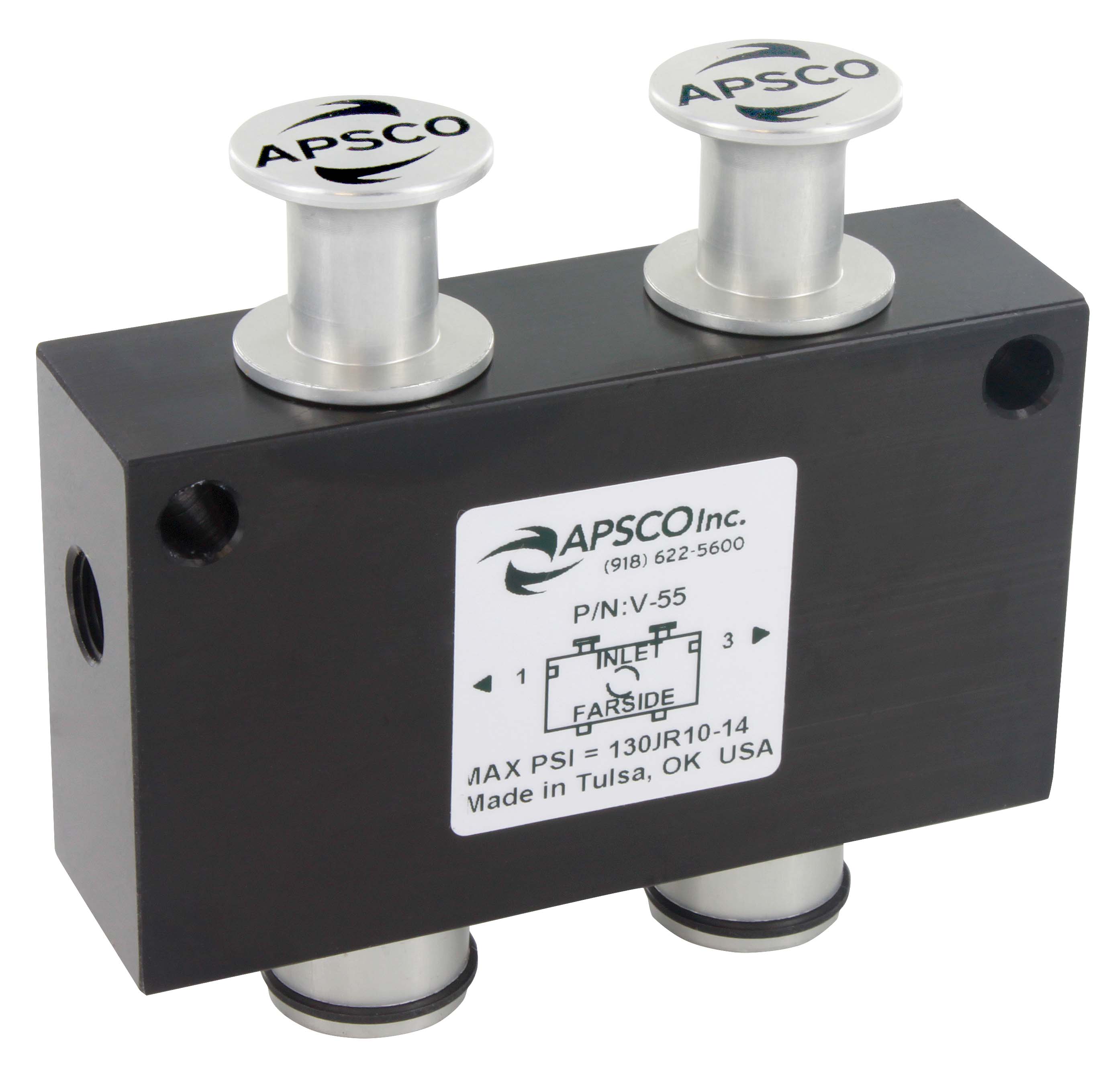

V-55 |
2-position, dual spool, 3-way |
2 thru holes horizontal |
Push/Pull |
1/8" |
2.00" |
2.00" |
1.00" |
130 |
S.A. | Image | ||

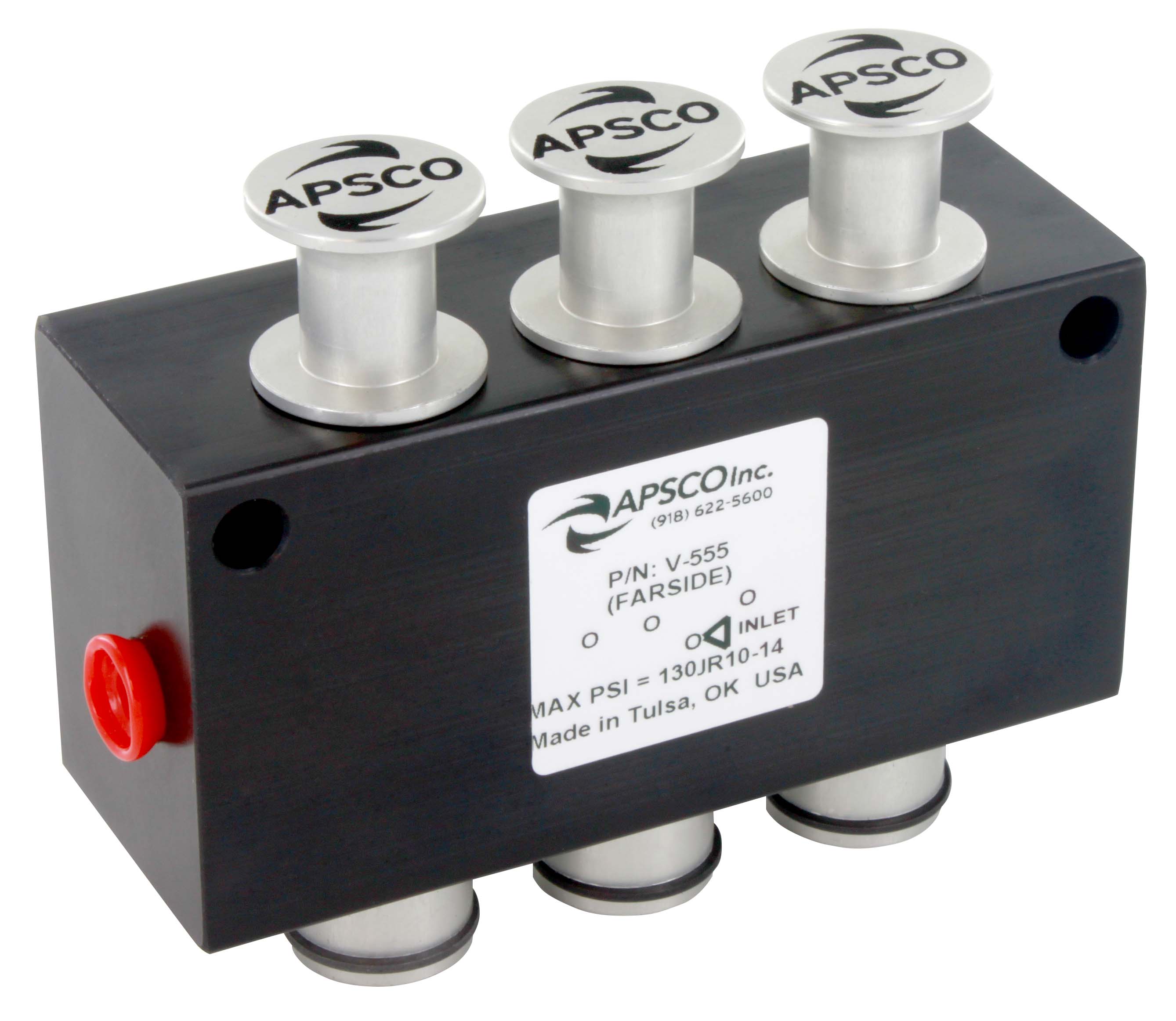

V-555 |
2-position, triple spool, 3-way |
2 thru holes horizontal |
Push/Pull |
1/8" |
2.00" |
2.00" |
1.50" |
130 |
S.A. | Image | ||
V-85 |
2-position, dual spool, 4-way & 3-way |
2 thru holes horizontal |
Push/Pull |
1/8" |
2.00" |
2.00" |
1.00" |
130 |
S.A. & D.A. | |||

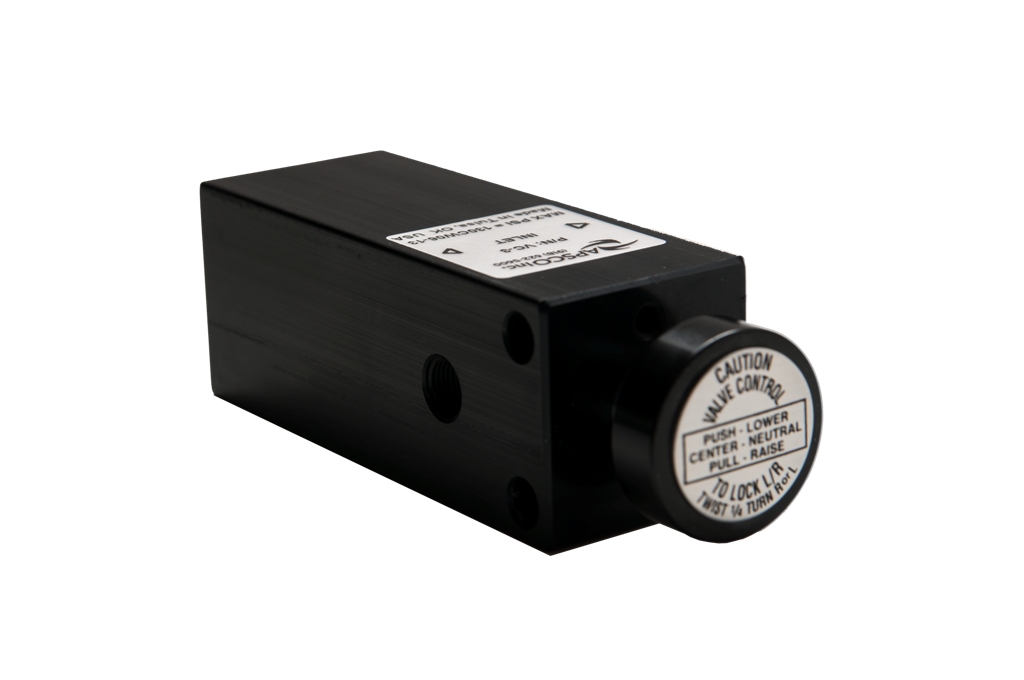

VC-3 |
2-position, 3-way with spring to neutral and lock |
2 threaded 10-32 UNF vertical .2 thru holes horizontal |
Push/Pull |
1/8" |
1.50" |
4.00" |
1.50" |
130 |
S.A. | Image | ||

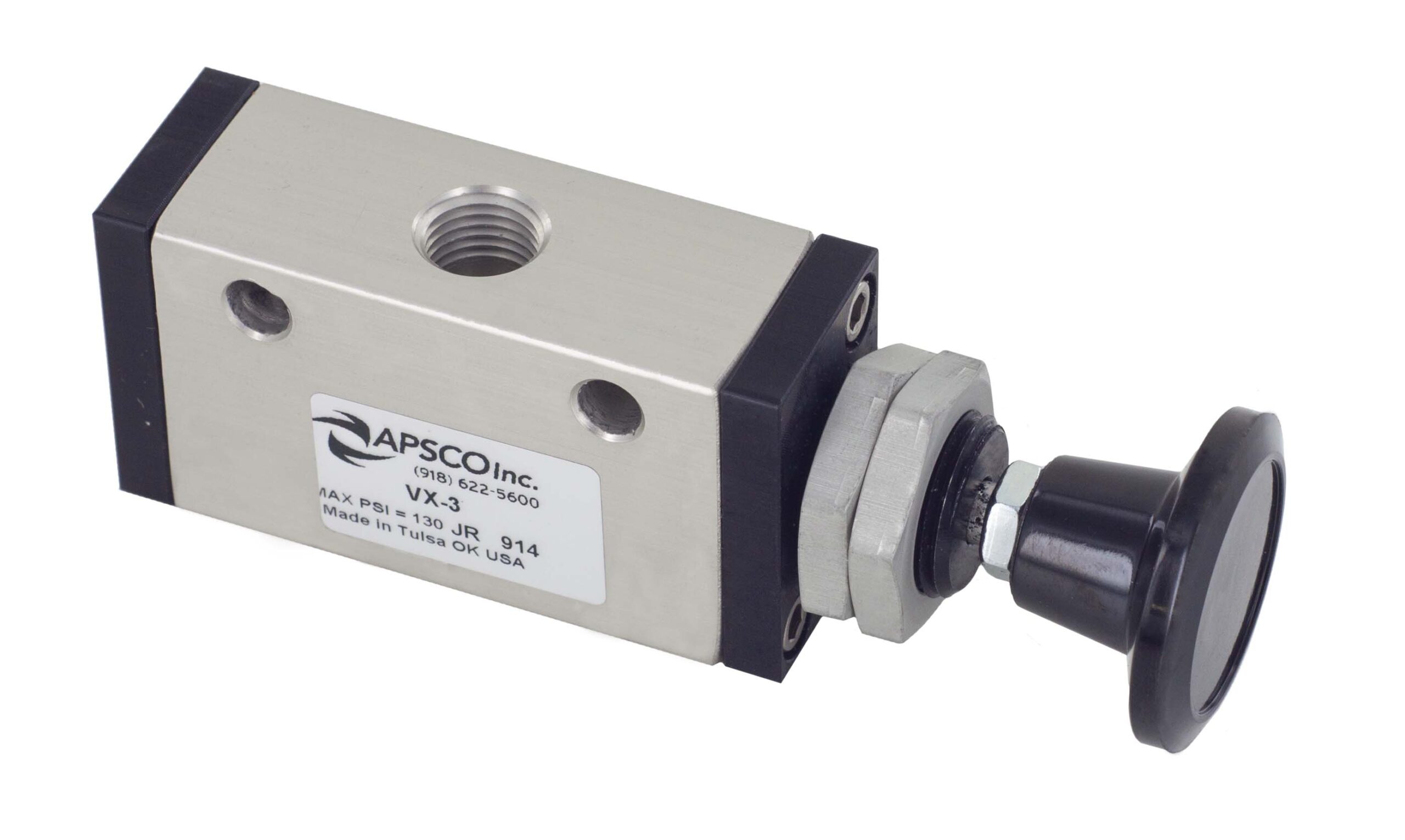

VX-3 |
2-position, 3-way valve, w/ 1/4" exhaust ports |
2 thru holes horizontal |
Push/Pull |
1/4" |
1.50" |
2.92" |
1.00" |
130 |
S.A. | Image |
