A | B | C | D | E | F | G | H | I | ||
|---|---|---|---|---|---|---|---|---|---|---|

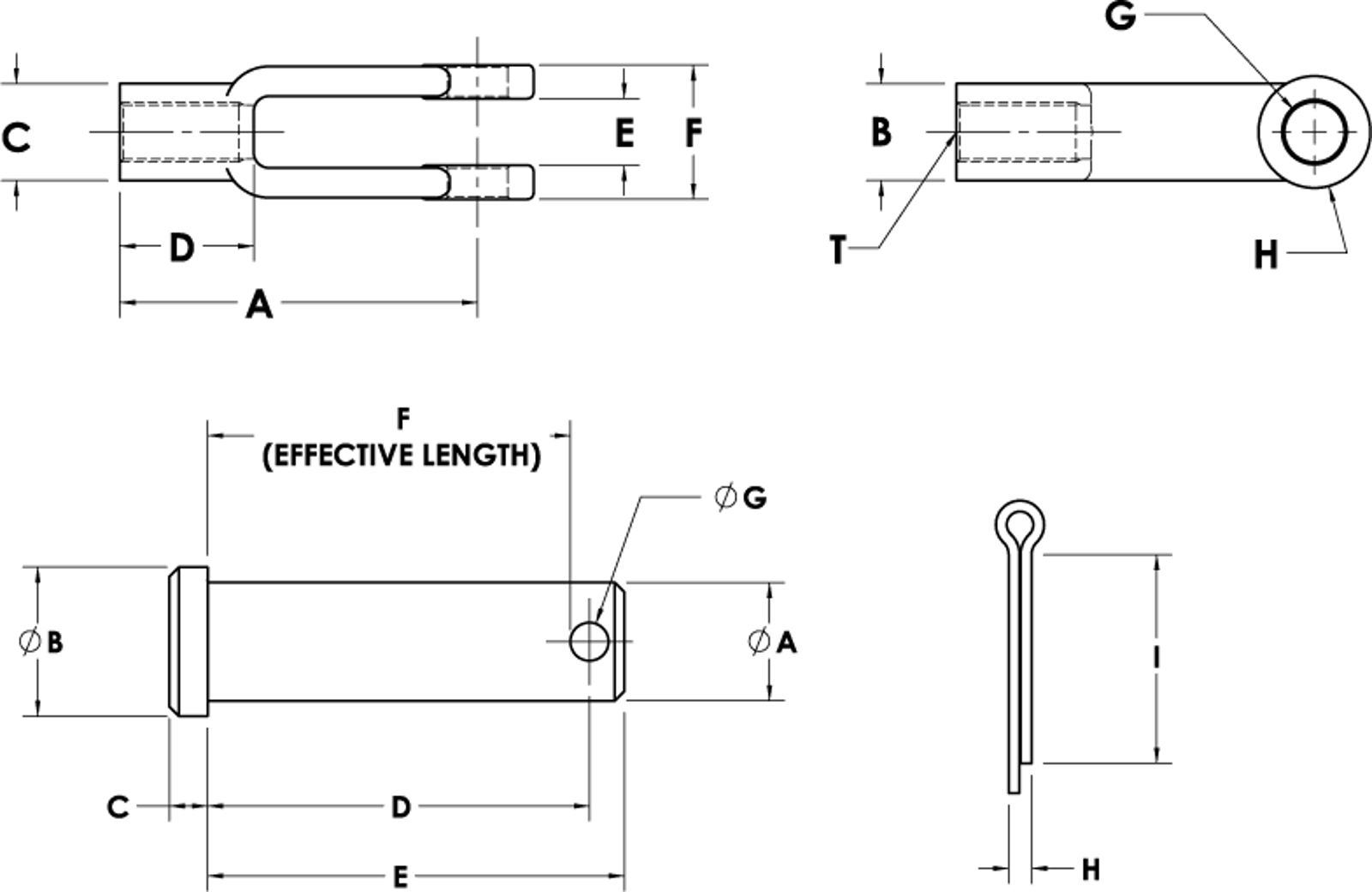

CLEVIS PIN PART # | PIN DIA | HEAD DIA | HEAD THICK | PIN HOLE CENTER | PIN LENGTH | EFFECTIVE LENGTH | COTTER HOLE DIA | COTTER DIA | COTTER LENGTH | COTTER PIN PART # |
1204 | 0.38" | 0.50" | 0.13" | 0.95" | 1.13" | 0.87" | 0.16" | 0.13" | 1.18" | 2357 |
1202 | 0.50" | 0.63" | 0.16" | 1.22" | 1.38" | 1.14" | 0.16" | 0.13" | 1.18" | 2357 |
3163 | 0.50" | 0.63" | 0.16" | 1.35" | 1.50" | 1.27" | 0.16" | 0.13" | 1.18" | 2357 |
4542 | 0.50" | 0.63" | 0.16" | 1.60" | 1.75" | 1.52" | 0.16" | 0.13" | 1.18" | 2357 |
3940 | 0.75" | 0.94" | 0.25" | 1.85" | 2.00" | 1.77" | 0.16" | 0.13" | 1.40" | 2355 |
3940A | 0.75" | 0.94" | 0.25" | 2.35" | 2.50" | 2.27" | 0.16" | 0.13" | 1.40" | 2355 |
4019 | 1.00" | 1.18" | 0.35" | 2.05" | 2.25" | 1.95" | 0.20" | 0.19" | 2.00" | 4021 |
5439 | 1.00" | 1.18" | 0.35" | 2.30" | 2.50" | 2.20" | 0.20" | 0.19" | 2.00" | 4021 |
4969 | 1.00" | 1.18" | 0.35" | 2.80" | 3.00" | 2.70" | 0.20" | 0.19" | 2.00" | 4021 |
7212 | 1.25" | 1.50" | 0.35" | 2.75" | 3.25" | 2.63" | 0.25 | 0.19" | 2.00" | 4021 |
T | A | B | C | D | E | F | G | H | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
CLEVIS PART # | THREAD SIZE | END CENT. PIN | NECK HEIGHT | NECK WIDTH | THREAD LG | SLOT WIDTH | WIDTH | PIN SIZE | RADIUS | CLEVIS PIN PART # | COTTER PIN PART # |
1169 | 3/8-24 UNF | 1.38" | .63" | 0.63" | 0.50" | 0.44" | 0.88" | 0.38" | 0.37" | 1204 | 2357 |
1201 | 1/2-20 UNF | 3.00" | .81" | 0.81" | 1.13" | 0.56" | 1.13" | 0.50" | 0.47" | 3163 | 2357 |
1299 | 1/2-20 UNF | 1.09" | .88" | 1.00" | 0.47" | 0.57" | 1.00" | 0.50" | None | 1202 | 2357 |
4588 | 1/2-20 UNF | 1.38" | .63" | 0.63" | 0.53" | 0.44" | 0.88" | 0.38" | 0.34" | 1204 | 2357 |
5104 | 1/2-20 UNF | 1.75" | .88" | 0.88" | 0.50" | 0.56" | 1.26" | 0.50" | 0.47" | 3163 | 2357 |
3162 | 5/8-18 UNF | 1.75" | .88" | 0.88" | 0.50" | 0.56" | 1.25" | 0.50" | 0.47" | 3163 | 2357 |
5362 | 1-14 UNS | 3.13" | 2.00" | 2.00" | 1.13" | 1.13" | 2.00" | 0.75" | 1.00" | 3940A | 2355 |
6995 | 1-14 UNS | 3.00" | 2.00" | 2.00" | 1.00" | 1.13" | 2.00" | 1.00" | 1.00" | 5439 | 4021 |
6743 | 1-14 UNS | 3.25" | 2.50" | 2.00" | 1.25" | 1.54" | 2.50" | 1.00" | 1.00" | 4969 | 4021 |
7213 | 1-14 UNS | 3.25" | 2.50" | 2.50" | 1.28" | 1.29" | 2.50" | 1.25" | 1.25" | 7212 | 4021 |
7230 | 1-14 UNS | 3.13" | 2.50" | 2.50" | 1.06" | 1.29" | 2.50" | 1.00" | 1.25" | 4969 | 4021 |
7265 | 1-14 UNS | 3.75" | 2.50" | 2.50" | 1.52" | 1.54" | 2.50" | 1.00" | 1.25" | 4969 | 4021 |
7014 | 1 1/8-12 UNF | 4.62" | 2.00" | 2.50" | 1.14" | 1.25" | 2.50" | 1.00" | 1.00" | 4969 | 4021 |
4131 | 1 1/4-12 UNF | 3.75" | 2.50" | 2.50" | 1.50" | 1.54" | 2.50" | 1.00" | 1.00" | 4969 | 4021 |
4910 | 1 1/4-12 UNF | 3.00" | 2.50" | 2.50" | 1.50" | 1.54" | 2.50" | 1.00" | 1.00" | 4969 | 4021 |
