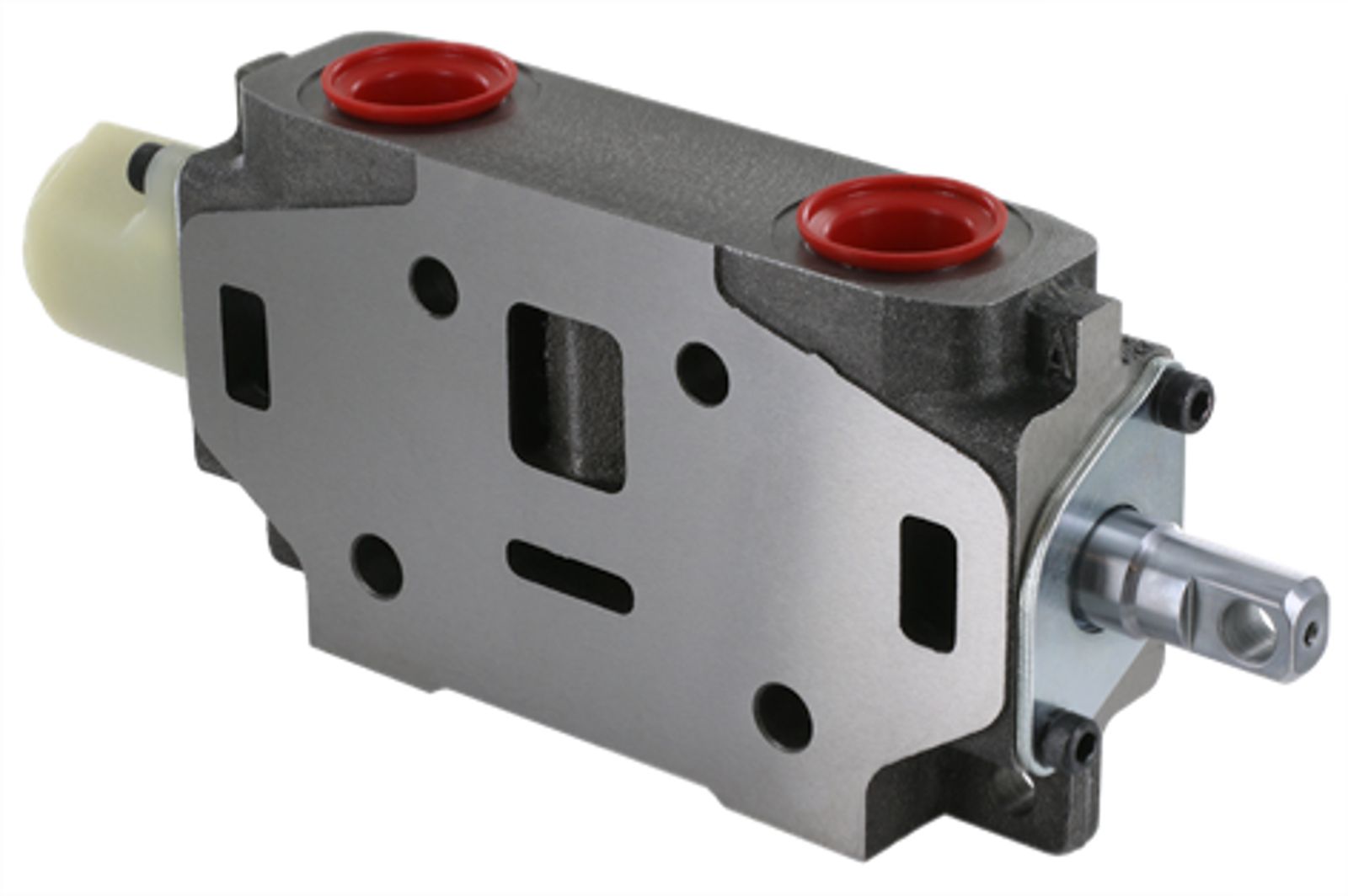

APG 20 Series

Directional Control Valve

APSCO’s APG directional control valves are sectional hydraulic valves that can be used in parallel/open center circuit applications with manual, hydraulic or pneumatic actuation.

  • Interchangeable with the very popular VA and VG series hydraulic valve
  • The APG 20 Series has a nominal capacity of 40gpm and a max operating pressure of 3500PSI.

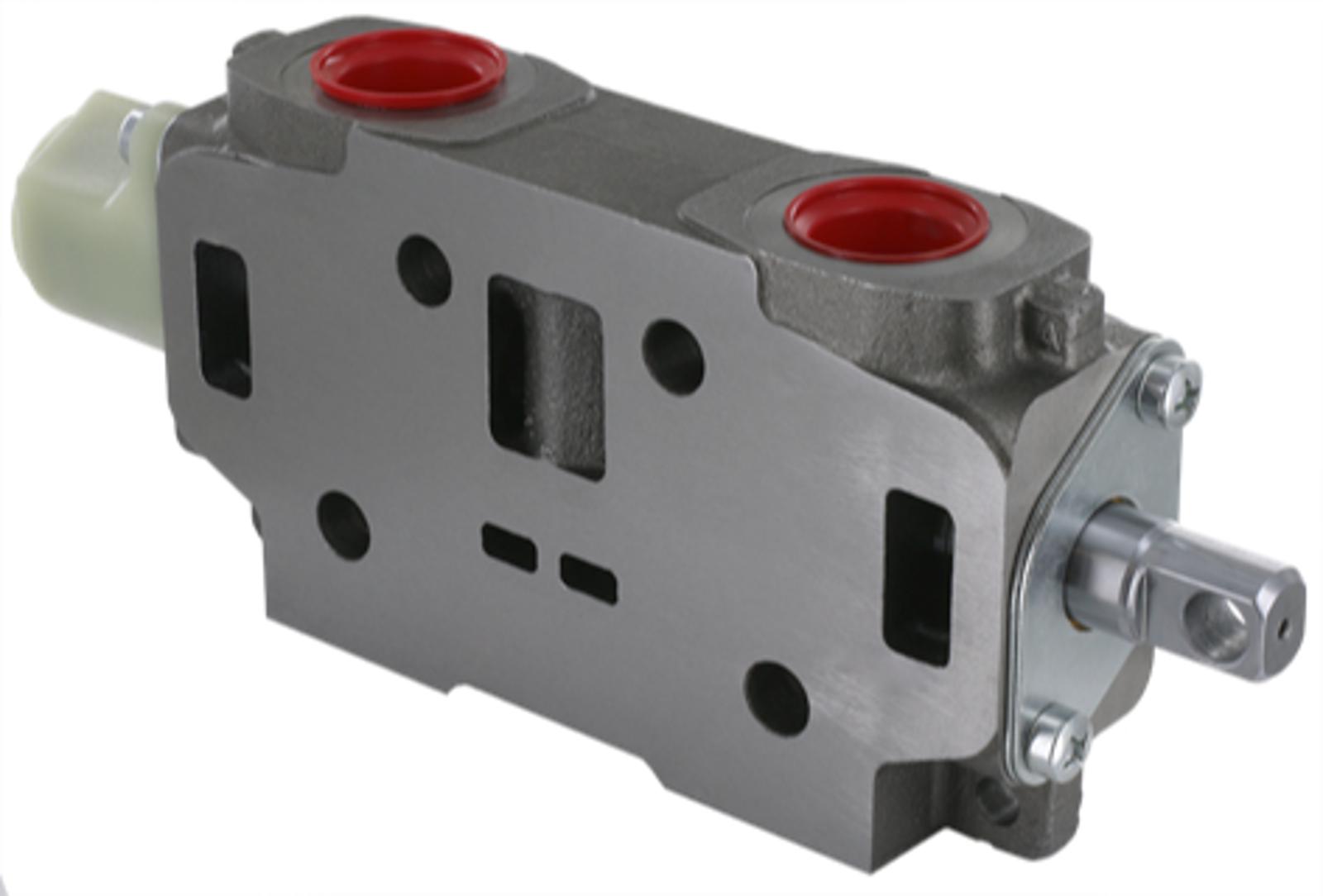

  • The APG35 Series has a nominal capacity of 70gpm and a max operating pressure of 3500PSI
  • The compacted graphite cast iron construction allows for a max operating pressure of 3500PSI
  • Available in individual components or we can build you a custom engineered and tested valve assembly
  • 100% factory tested
  • Compacted graphite cast iron for shock load resistance and higher pressure needs
  • Full flow relief valves and low open center pressure drop
  • Parallel circuit design permits all spools to be operated independently or simultaneously with the lightest load receiving priority
  • Precision machined spools are hard chrome plated for maximum life and corrosion resistance
  • Stackable sectional design allows for customizing the assembly to your specific needs
  • Work sections are 100% pre-assembled and pre-tested before shipping
  • Large variety of spool types and backcap actions. Transition load checks are standard to prevent load shifts between spool positions
  • Wide range of work port options including port reliefs, anti-cavitation valves, port restrictors, and power beyond (or HPCO – High Pressure Carry Over) providing flexibility for all your design needs
    Technical data
  • Directly interchangeable with the popular VA20 and VG20 hydraulic valve product lines.
  • Available in individual components or we can build you a custom engineered and tested valve assembly



Design Type: Sectional

Circuit: Parallel/Open Center

Material: Compacted Graphite cast iron, a High Strength Iron Alloy

Capacity: 40 GPM nominal

Max. System Pressure: 3500 psi – using SAE porting

Relief Valves

  • Inlet Main Relief Valve – Screw adjustable with pressure ranges settings from 500-3500 psi
  • Hi-Boy Work Section Port Relief Valves – available in adjustable or fixed configurations with pressure range settings from 500 – 3500 psi

PART #

DVA SERIES PRODUCT CODE

DVG SERIES PRODUCT CODE

DESCRIPTION

APG20-A440

DVA20-A440

DVG20-A440

Inlet 1" NPT top and side ports (without relief)

APG20-A880

DVA20-A880

DVG20-A880

Inlet SAE-16 top and side ports (without relief)

PART #

DVA SERIES PRODUCT CODE

DVG SERIES PRODUCT CODE

DESCRIPTION

APG20-MRV

DVA20-MRV

DVG20-MRV

Inlet relief 500-2500PSI Screw Adjustable - Set @ 2000 psi

APG20-HMRV

DVA20-HMRV

DVG20-HMRV

Inlet relief 2000-3500PSI Screw Adjustable - Set @ 3000 psi

APG20-MRVP

DVA20-MRVP

DVG20-MRVP

Inlet Relief Plug

PART #

DVA SERIES PRODUCT CODE

DVG SERIES PRODUCT CODE

DERSCRIPTION

APG20-TR44

DVA20-TR44

DVG20-TR44

Outlet, 1" NPT port top and end

APG20-TR88

DVA20-TR88

DVG20-TR88

Outlet, SAE-16 Ports top and end

APG20-PB08

DVA20-PB08

DVGA20-PB08

Outlet, Power beyond, SAE-16 Top Ports

APG20-PB44

DVA20-PB44

DVG20-PB44

Outlet, Power beyond, 1" NPT Ports

APG20-PB80

DVA20-PB80

DVG20-PB80

Outlet, Power beyond, SAE-16 End Ports

APG20-PB88

DVA20-PB88

DVG20-PB88

Outlet, Power beyond, SAE-16 Ports top and end

PART #

DVA SERIES PRODUCT CODE

DVG SERIES PRODUCT CODE

DESCRIPTION

APG20-SA3

DVA20-SA3

DVG20-SA3

Single acting, cylinder spool, spring return, 3/4" NPT ports, B port only

APG20-DA7

DVA20-SA7

DVG20-SA7

Single acting, cylinder spool, spring return, SAE-12 ports, B port only

APG20-SV3M

DVA20-SV3

DVG20-SV3

Single acting, cylinder spool, metering airshift, spring return, 3/4 NPT ports - B port only

APG20-SV3NM

Single acting, cylinder spool, non-metering airshift, spring return, 3/4 NPT ports - B port only

APG20-SV7M

DVA20-SV7

DVG20-SV7

Single acting, cylinder spool, metering airshift, spring return, SAE-12 ports - B port only

APG20-SV7NM

Single acting, cylinder spool, non-metering airshift, spring return, SAE-12 ports - B port only

AGP20-DA3

DVA20-DA3

DVG20-DA3

Double acting, cylinder spool, spring return, 3/4" NPT ports

APG20-DA7

DVA20-DA7

DVG20-DA7

Double acting, cylinder spool, spring return, SAE-12 ports

APG20-DB3

DVA20-DB3

DVG20-DB3

Double acting, cylinder spool, 3 pos detent, 3/4" NPT ports

APG20-DB7

DVA20-DB7

DVG20-DB7

Double acting, cylinder spool, 3 pos detent, SAE-12 ports

APG20-DX3

DVA20-DX3

DVG20-DX3

Double acting, cylinder spool, hydraulic pilot control, spring return, 3/4" NPT ports

APG20-DX7

DVA20-DX7

DVG20-DX7

Double acting, cylinder spool, hydraulic pilot control, spring return, SAE-12 ports

APG20-DV3M

DVA20-DV3

DVG20-DV3

Double acting, cylinder spool, metering airshift, spring return, 3/4" NPT ports

APG20-DV3NM

Double acting, cylinder spool, non-metering airshift, spring return, 3/4" NPT ports

APG20-DV7M

DVA20-DV7

DVG20-DV7

Double action, cylinder spool, metering airshift, spring return, SAE-12 ports

APG20-DV7NM

Double acting, cylinder spool, non-metering airshift, spring return, SAE-12 ports

APG20-MA3

DVA20-MA3

DVG20-MA3

Double acting, motor spool, spring return, 3/4" NPT ports

APG20-MA7

DVA20-MA7

DVG20-MA7

Double acting, motor spool, spring return, SAE-12 ports

APG20-MB3

DVA20-MB3

DVG20-MB3

Double acting, motor spool, 3 pos detent, 3/4" NPT ports

APG20-MB7

DVA20-MB7

DVG20-MB7

Double acting, motor spool, 3 pos detent, SAE-12 ports

APG20-MX3

DVA20-MX3

DVG20-MX3

Double acting, motor spool, hydraulic pilot control, spring return, 3/4" NPT ports

APG20-MX7

DVA20-MX7

DVG20-MX7

Double acting, motor spool, hydraulic pilot control, spring return, SAE-12 ports

APG20-MV3M

DVA20-MV3

DVG20-MV3

Double acting,motor spool, metering airshift, spring return, 3/4" NPT ports

APG20-MV3NM

Double acting, motor spool, non-metering airshift, spring return, 3/4" NPT ports

APG20-MV7M

DVA20-MV7

DVG20-MV7

Double acting, motor spool, metering airshift, spring return, SAE-12 ports

APG20-MV7NM

Double acting, motor spool, non-metering airshift, spring return, SAE-12 ports

PART #

DVA SERIES PRODUCT CODE

DVG SERIES PRODUCT CODE

DESCRIPTION

APG20-JA305

DVA20-JA305

DVG20-JA305

HI-BOY, Single acting, cylinder spool, spring return, 3/4" NPT, B port only, Plastic Plugged

APG20-JA705

DVA20-JA705

DVG20-JA705

HI-BOY, Single acting, cylinder spool, spring return, SAE-12, B port only, Plastic Plugged

APG20-JV305M

DVA20-JV305

DVG20-JV305

HI-BOY, Single acting, cylinder spool, metering airshift, spring return, 3/4" NPT, B port only, Plastic Plugged

APG20-JV305NM

HI-BOY, Single acting, cylinder spool, non-metering airshift, spring return, 3/4" NPT, B port only, Plastic Plugged

APG20-JV705M

DVA20-JV705

DVG20-JV705

HI-BOY, Single acting, cylinder spool, metering airshift, spring return, SAE-12, B port only, Plastic Plugged

APG20-JV705NM

HI-BOY, Single acting, cylinder spool, non-metering airshift, spring return, SAE-12,B port only, Plastic Plugged

APG20-HA355

DVA20-HA355

DVG20-HA355

HI-BOY, Double acting, cylinder spool, spring return, 3/4" NPT ports, Plastic Plugged

APG20-HA755

DVA20-HA755

DVG20-HA755

HI-BOY, Double acting,cylinder spool, spring return, SAE-12 ports, Plastic Plugged

APG20-HB355

DVA20-HB355

DVG20-HB355

HI-BOY, Double acting, cylidner spool, 3 pos detent, 3/4" NPT ports, Plastic Plugged

APG20-HB755

DVA20-HB755

DVG20-HB755

HI-BOY, Double acting, cylinder spool, 3 pos detent, SAE-12 ports, Plastic Plugged

APG20-HX355

DVA20-HX355

DVG20-HX355

HI-BOY, Double acting, cylinder spool, hydraulic pilot control, spring return, 3/4" NPT ports , Plastic Plugged

APG20-HX755

DVA20-HX755

DVG20-HX755

HI-BOY, Double action, cylinder spool, hydraulic pilot control, spring return, SAE-12 ports, Plastic Plugged

APG20-HV355M

DVA20-HV355

DVG20-HV355

HI-BOY, Double acting, cylinder spool, metering airshift, spring return, 3/4" NPT ports, Plastic Plugged

APG20-HV355NM

HI-BOY, Double acting, cylinder, non-metering airshift, spring return, 3/4" NPT ports, Plastic Plugged

APG20-HV755M

DVA20-HV755

DVG20-HV755

HI-BOY, Double acting, cylinder spool, metering airshift, spring return, SAE-12 ports, Plastic Plugged

APG20-HV755NM

HI-BOY, Double acting, cylinder spool, non-metering airshift, spring return, SAE-12 ports, Plastic Plugged

APG20-LA355

DVA20-LA355

DVG20-LA355

HI-BOY, Double acting, motor spool, spring return, 3/4" NPT ports, Plastic Plugged

APG20-LA755

DVA20-LA755

DVG20-LA755

HI-BOY, Double acting, motor spool, spring return, SAE-12 ports, Plastic Plugged

APG20-LB355

DVA20-LB355

DVG20-LB355

HI-BOY, Double acting, motor spool, 3 position detent, 3/4" NPT ports, Plastic Plugged

APG20-LB755

DVA20-LB755

DVG20-LB755

HI-BOY, Double acting, motor spool, 3 position detent, SAE-12 ports, Plastic Plugged

APG20-LX355

DVA20-LX355

DVG20-LX355

HI-BOY, Double acting, motor spool, hydraulic pilot control, spring return, 3/4" NPT ports , Plastic Plugged

APG20-LX755

DVA20-LX755

DVG20-LX755

HI-BOY, Double acting, motor spool, hydraulic pilot control, spring return, SAE-12 ports , Plastic Plugged

APG20-LV355M

DVA20-LV355

DVG20-LV355

HI-BOY, Double acting, motor spool, metering airshift, spring return, 3/4"NPT ports, Plastic Plugged

APG20-LV355NM

HI-BOY, Double acting motor spool, non-metering airshift, spring return 3/4"NPT ports, Plastic Plugged

APG20-LV755M

DVA20-LV755

DVG20-LV755

HI-BOY, Double acting, motor spool, metering airshift, spring return, SAE-12 ports, Plastic Plugged

APG20-LV755NM

HI-BOY, Double acting, motor spool, non-metering airshift, spring return, SAE-12 ports, Plastic Plugged

PART #

DVA SERIES PRODUCT CODE

DESCRIPTION

APG-PRVAC

DV-PRVAC

Port Relief Valve with AC, screw adjustable 500-5000PSI (factory set 2500PSI@10GPM)

APG-PRVS-1

DV-PRVS-1

Port Relief, Screw Adjustable 500- 1000 psi (set @ 750 psi)

APG-PRVS-2

DV-PRVS-2

Port Relief Valve, Screw Adjustable 1000-2500 psi (set @ 1250 psi)

APG-PRVS-3

DV-PRVS-3

Port Relief, Screw Adjustable 2500- 3500 psi (set @ 2000 psi)

APG-PRVP

DV-PRVP

Work Port Relief Valve plug

APG-PRV-1

DV-PRV-1

Port Relief, Shim Adjustable 500- 1000 psi Set @ 1000 psi

APG-PRV-2

DV-PRV-2

Port Relief Valve, Shim Adjustable 1000-2500 psi Set @ 2000 psi

APG-PRV-3

DV-PRV-3

Work Port Relief, Shim Adjustable, 2500-3500 psi Set @ 2500 psi

APG-PRV-SK

DV-PRV-SK

Port Relief Valve Shim Kit

PART #

DVA SERIES PRODUCT CODE

DESCRIPTION

APG20-SK-1

DVA20-SK-1

Blind Hole Stud Kits, 1 work section

APG20-SK-2

DVA20-SK-2

Blind Hole Stud Kits, 2 work section

APG20-SK-3

DVA20-SK-3

Blind Hole Stud Kits, 3 work section

APG20-SK-4

DVA20-SK-4

Blind Hole Stud Kits, 4 work section

APG20-SK-5

DVA20-SK-5

Blind Hole Stud Kits, 5 work section

APG20-SK-6

DVA20-SK-6

Blind Hole Stud Kits, 6 work section

APG20-SK-7

DVA20-SK-7

Blind Hole Stud Kits, 7 work section

APG20-SK-8

DVA20-SK-8

Blind Hole Stud Kits, 8 work section

PART #

DVA SERIES PRODUCT CODE

DESCRIPTION

APG20-H-3

DV20-H-3

6" Standard Handle

APG20-H-4

DV20-H-4

8" standard Handle

APG20-H-6

DV20-H-6

6" H style Handle For High Boy

APG20-H-8

DV20-H-8

8" H style Handle For High Boy

APG20-H-10

VG20-H-10

10" H style Handle For High Boy

PART #

DVA SERIES PRODUCT CODE

DESCRIPTION

APG20-K-1

DV20-K-1

Assembly Kit = For seals - between sections only

APG20-K-2

DV20-K-2

Repair Kit = For section seals, spool seals and back up rings, load check seal

APG20-K-101

DV20-K-101

Detent Kit

APG20-K-100

DV20-K-100

Spring Center Kit

APG20-K-109

DV20-K-109

Hydraulic Pilot Kit

C-3820-DM

DV20-K-113

Metering Air Shift Kit

C-3520-DM

Non Metering Air Shift Kit

Brochure

APG-20 Parts List
