- Interchangeable with the very popular VA and VG series hydraulic valve

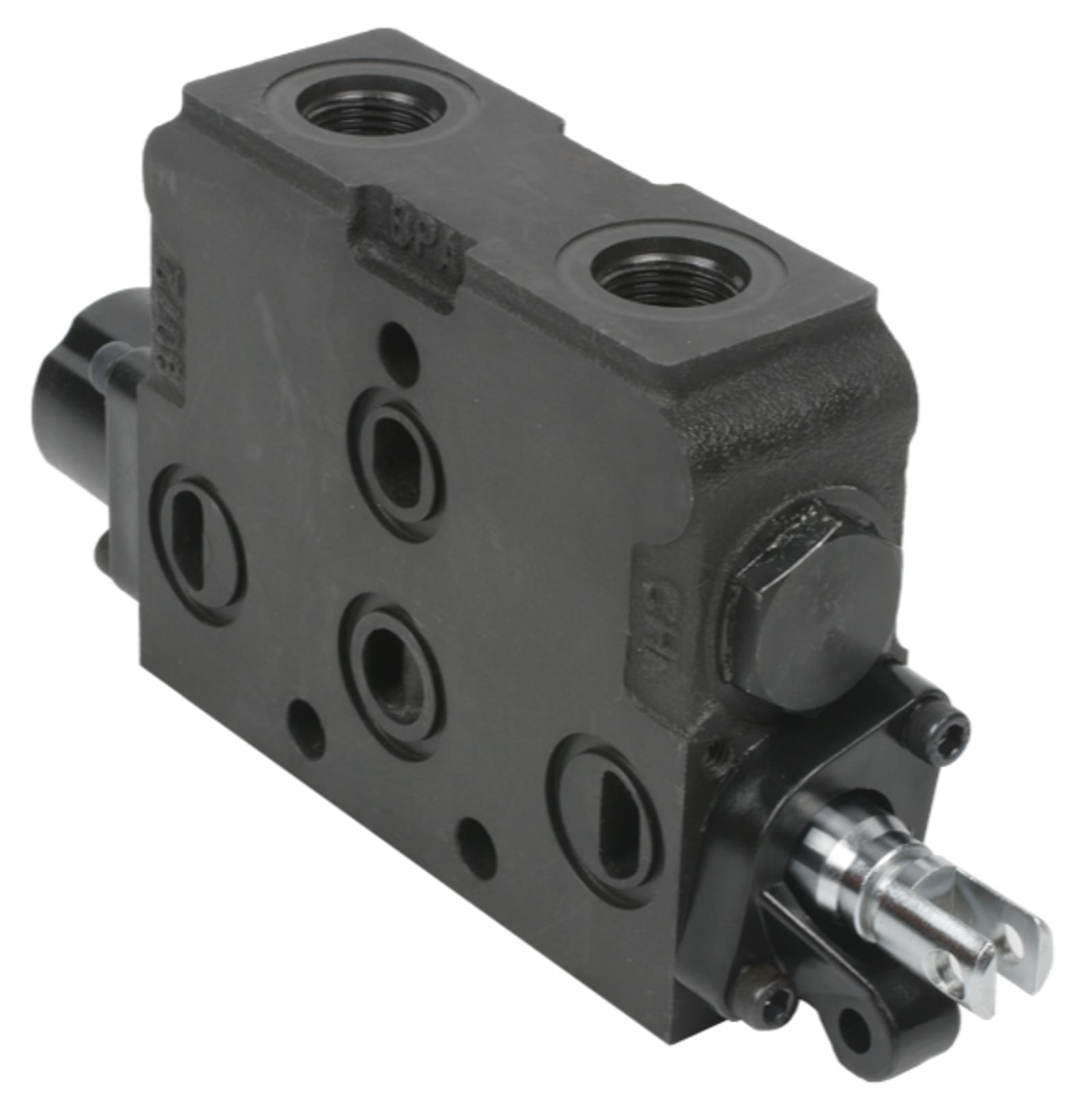

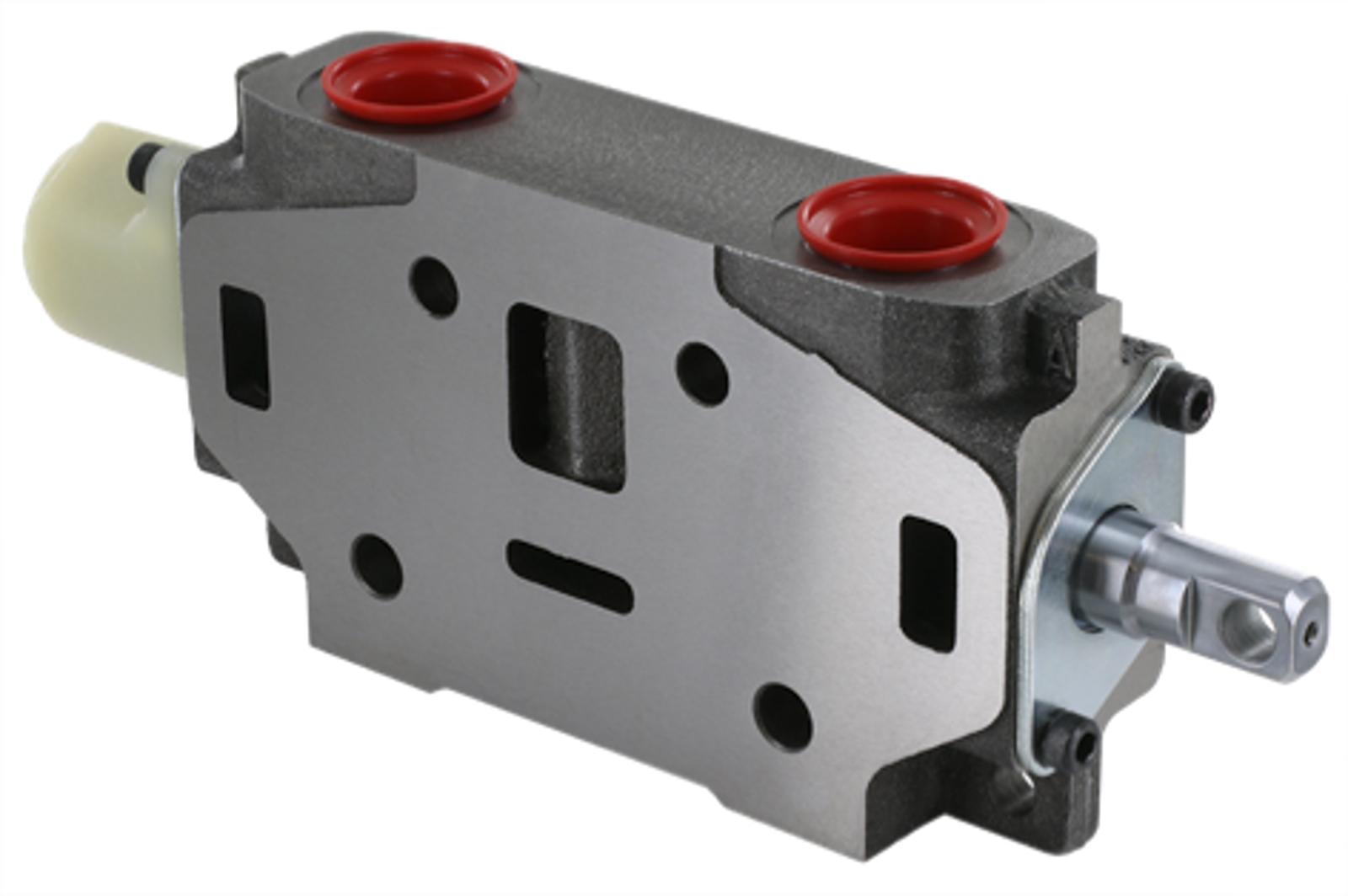

- The APG 20 Series has a nominal capacity of 40gpm and a max operating pressure of 3500PSI.

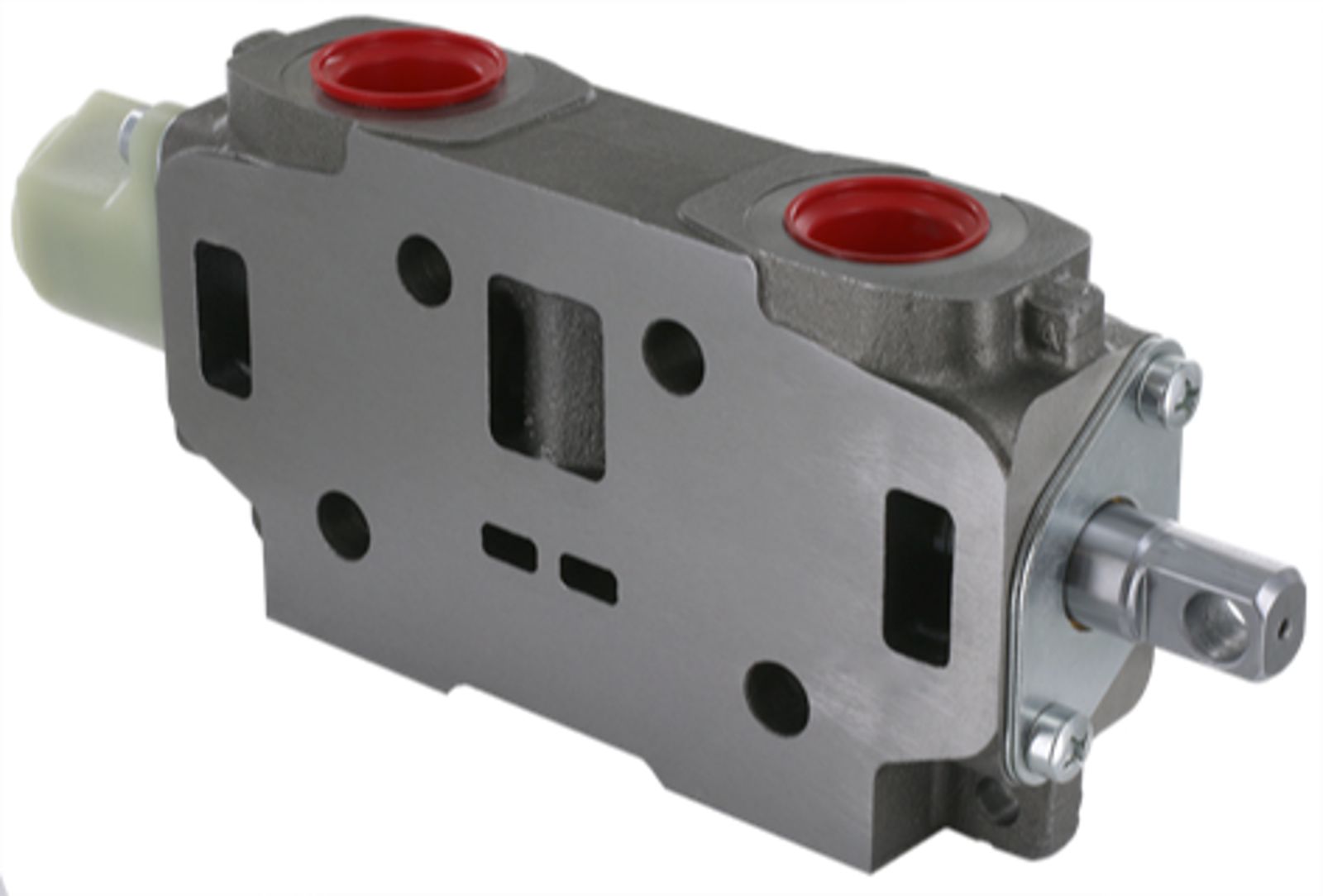

- The APG35 Series has a nominal capacity of 70gpm and a max operating pressure of 3500PSI
- The compacted graphite cast iron construction allows for a max operating pressure of 3500PSI
- Available in individual components or we can build you a custom engineered and tested valve assembly
- 100% factory tested
- Compacted graphite cast iron for shock load resistance and higher pressure needs
- Full flow relief valves and low open center pressure drop
- Parallel circuit design permits all spools to be operated independently or simultaneously with the lightest load receiving priority
- Precision machined spools are hard chrome plated for maximum life and corrosion resistance
- Stackable sectional design allows for customizing the assembly to your specific needs
- Work sections are 100% pre-assembled and pre-tested before shipping
- Large variety of spool types and backcap actions. Transition load checks are standard to prevent load shifts between spool positions
- Wide range of work port options including port reliefs, anti-cavitation valves, port restrictors, and power beyond (or HPCO – High Pressure Carry Over) providing flexibility for all your design needs
Technical data - Directly interchangeable with the popular VA35 and VG35 hydraulic valve product lines.
- Available in individual components or we can build you a custom engineered and tested valve assembly
Design Type: Sectional
Circuit: Parallel/Open Center
Material: Compacted Graphite cast iron, a High Strength Iron Alloy
Capacity: 70 GPM – 226 LPM – Nominal
Max. System Pressure: 3500 psi – using SAE porting
Seal Type: Buna-N
Relief Valves
- Inlet Main Relief Valve – Screw adjustable with pressure ranges settings from 500-3500 psi
- Hi-Boy Work Section Port Relief Valves – available in adjustable or fixed configurations with pressure range settings from 800 – 3500 psi
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-A440 | DVA35-A440 | DVG35-A440 | Inlet with 1" NPT top & side ports (without relief) |
APG35-A880 | DVA35-A880 | DVG35-A880 | Inlet with SAE-16 top & side ports (without relief) |
APG35-A980 | DVA35-A980 | DVG35-A980 | Inlet with SAE-20 Side Port, SAE-16 Top Port (without relief) |
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-MRV-1 | DVA35-MRV-1 | DVG35-MRV-1 | Inlet Relief 800-2000PSI Screw Adjustable , Set @ 2000 psi |
APG35-MRV-2 | DVA35-MRV-2 | DVG35-MRV-2 | Inlet relief 2000-2500PSI Screw Adjustable , Set @ 2500 psi |
APG35-HMRV | DVG35-HMRV | Inlet relief 2800-3500PSI Screw Adjustable, Set @ 3000 psi | |
APG35-MRVP | DVA35-MRVP | DVG-MRVP | Inlet relief plug |
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-TR55 | DVA35-TR55 | DVG35-TR55 | Outlet, 1 1/4" NPT ports top and side |
APG35-TR99 | DVA35-TR99 | DVG35-TR99 | Outlet, SAE-20 Ports top and side |
APG35-PB55 | DVA35-PB55 | DVG35-PB55 | Power Beyond Outlet 1 1/4" NPT ports |
APG35-PB90 | DVA35-PB90 | DVG35-PB90 | Power Beyond Outlet SAE 20 end ports |
APG35-PB99 | DVA35-PB99 | DVG35-PB99 | Power Beyond Outlet SAE 20 top and side ports |
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-SA4 | DVA35-SA4 | DVG35-SA4 | Single acting, cylinder spool, spring return, 1" NPT port, B port only |
APG35-SA8 | DVA35-SA8 | DVG35-SA8 | Single acting, cylinder spool, spring return, SAE-16 port, B port only |
APG35-SV4M | DVA35-SV4 | DVG35-SV4 | Single acting, cylinder spool, metering airshift, spring return, 1" NPT port, B port only |
APG35-SV4NM | Single acting, cylinder spool, non-metering airshift, spring return, 1" NPT port, B port only | ||
APG35-SV8M | DVA35-SV8 | DVG35-SV8 | Single acting, cylinder spool, metering airshift,spring return, SAE-16 port, B port only |
APG35-SV8NM | Single acting, cylinder spool, non-metering airshift, spring return, SAE-16 port, B port only | ||
APG35-DA4 | DVA35-DA4 | DVG35-DA4 | Double acting, cylinder spool, spring return, 1" NPT ports |
APG35-DA8 | DVA35-DA8 | DVG35-DA8 | Double acting , cylinder spool, spring return, SAE-16 ports |
APG35-DB4 | DVA35-DB4 | DVG35-DB4 | Double acting, cylinder spool, 3 pos detent, 1" NPT ports |
APG35-DB8 | DVA35-DB8 | DVG35-DB8 | Double acting, cylinder spool, 3 pos detent, SAE-16 ports |
APG35-DX4 | DVA35-DX4 | DVG35-DX4 | Double acting, cylinder spool, hydraulic pilot control, spring return, 1" NPT ports |
APG35-DX8 | DVA35-DX8 | DVG35-DX8 | Double acting, cylidner spool, hydraulic pilot control, spring return, SAE-16 ports |
APG35-DV4M | DVA35-DV4 | DVG35-DV4 | Double action, cylinder spool, metering airshift, spring return, 1" NPT ports |
APG35-DV4NM | Double action, cylinder spool, non-metering airshift, spring return, 1" NPT ports | ||
APG35-DV8M | DVA35-DV8 | DVA35-DV8 | Double action, cylinder spool, metering airshift, spring return, SAE-16 ports |
APG35-DV8NM | Double action, cylinder spool, non-metering airshift, spring return, SAE-16 ports | ||
APG35-MA4 | DVA35-MA4 | DVG35-MA4 | Double acting, motor spool, spring return, 1"NPT ports |
APG35-MA8 | DVA35-MA8 | DVG35-MA8 | Double acting, motor spool, spring return, SAE-16 ports |
APG35-MB4 | DVA35-MB4 | DVG35-MB4 | Double acting, motor spool, 3 pos detent, 1" NPT ports |
APG35-MB8 | DVA35-MB8 | DVG35-MB8 | Double acting, motor spool, 3 pos detent, SAE-16 ports |
APG35-MX4 | DVA35-MX4 | DVG35-MX4 | Double acting, motor spool, hydraulic pilot control, spring return, 1" NPT ports |
APG35-MX8 | DVA35-MX8 | DVG35-MX8 | Double acting, motor spool, hydraulic pilot control, spring return, SAE-16 ports |
APG35-MV4M | DVA35-MV4 | DVG35-MV4 | Double action, motor spool, metering airshift, spring return, 1" NPT ports |
APG35-MV4NM | Double action, motor spool, non-metering airshift, spring return, 1" NPT ports | ||
APG35-MV8M | DVA35-MV8 | DVG35-MV8 | Double action, motor spool, metering airshift, spring return, SAE-16 ports |
APG35-MV8NM | Double action, motor spool, non-metering airshift, spring return, SAE-16 ports |
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-JA405 | DVA35-JA405 | DVG35-JA405 | Hi-BOY, Single acting, cylinder spool, spring return, 1" NPT, B port only, Plastic Plugged |
APG35-JA805 | DVA35-JA805 | DVG35-JA805 | Hi-BOY, Single acting, cylinder spool, spring return, SAE-16, B port only, Plastic Plugged |
APG35-JV405M | DVA35-JV405 | DVG35-JV405 | Hi-BOY, Single acting, cylinder spool, metering actuator, spring return, 1" NPT, B port only, Plastic Plugged |
APG35-JV405NM | Hi-BOY, Single acting, cylinder spool, non-metering actuator, spring return, 1" NPT, B port only, Plastic Plugged | ||
APG35-JV805M | DVA35-JV805 | DVG35-JV805 | Hi-BOY, Single acting, cylinder spool, metering air shift, SAE-16, B port only, Plastic Plugged |
APG35-JV805NM | Hi-BOY, Single acting, cylinder spool, non-metering air shift, SAE-16, B port only, Plastic Plugged | ||
APG35-HA455 | DVA35-HA455 | DVG35-HA455 | Hi-BOY, Double acting, cylinder spool, spring return, 1" NPT ports, Plastic Plugged |
APG35-HA855 | DVA35-HA855 | DVG35-HA855 | Hi-BOY, Double acting, cylinder spool, spring return, SAE-16 ports, Plastic Plugged |
APG35-HB455 | DVA35-HB455 | DVG35-HB455 | Hi-BOY, Double acting, cylinder spool, 3 pos detent, 1" NPT ports, Plastic Plugged |
APG35-HB855 | DVA35-HB855 | DVG35-HB855 | Hi-BOY, Double acting, cylinder spool, 3 pos detent, SAE-16 ports, Plastic Plugged |
APG35-HX455 | DVA35-HX455 | DVG35-HX455 | Hi-BOY, Double acting, cylinder spool, hydraulic pilot control, spring return, 1" NPT ports, Plastic Plugged |
APG35-HX855 | DVA35-HX855 | DVG35-HX855 | Hi-BOY, Double actiing, cylinder spool, hydraulic pilot control, spring return, SAE-16 ports, Plastic Plugged |
APG35-HV455M | DVA35-HV455 | DVG35-HV455 | Hi-BOY, Double acting, cylinder spool, metering airshift, spring return, 1" NPT ports, Plastic Plugged |
APG35-HV455NM | Hi-BOY, Double acting, cylinder spool, non-metering airshift, spring return, 1" NPT ports, Plastic Plugged | ||
APG35-HV855M | DVA35-HV855 | DVG35-HV855 | Hi-BOY, Double acting, cylinder spool, metering airshift, spring return, SAE-16 ports, Plastic Plugged |
APG35-HV855NM | Hi-BOY, Double acting, cylinder spool, non-metering airshift, spring return, SAE-16 ports, Plastic Plugged | ||
APG35-LA455 | DVA35-LA455 | DVG35-LA455 | Hi-Boy, Double acting, motor spool, spring return, 1"NPT ports, Plastic Plugged |
APG35-LA855 | DVA35-LA855 | DVG35-LA855 | Hi-BOY, Double acting, motor spool, spring return, SAE-16 ports, Plastic Plugged |
APG35-LB455 | DVA35-LB455 | DVG35-LB455 | Hi-BOY, Double acting, motor spool, 3 pos detent, 1" NPT ports, Plastic Plugged |
APG35-LB855 | DVA35-LB855 | DVG35-LB855 | Hi-BOY, Double acting, motor spool, 3 pos detent, SAE-16 ports, Plastic Plugged |
APG35-LX455 | DVA35-LX455 | DVG35-LX455 | Hi-BOY, Double acting, motor spool, hydraulic pilot control, spring return, 1" NPT ports, Plastic Plugged |
APG35-LX855 | DVG35-LX855 | DVG35-LX855 | Hi-BOY, Double acting, motor spool, hydraulic pilot control, spring return, SAE-16 ports, Plastic Plugged |
APG35-LV455M | DVA35-LV455 | DVG35-LV455 | Hi-BOY, Double acting, motor spool, metering airshift, spring return, 1" NPT ports, Plastic Plugged |
APG35-LV455NM | Hi-BOY, Double acting, motor spool, non-metering airshift, spring return, 1" NPT ports, Plastic Plugged | ||
APG35-LV855M | DVA35-LV855 | DVG35-LV855 | Hi-BOY, Double acting, motor spool, metering airshift, spring return, SAE-16 ports, Plastic Plugged |
APG35-LV855NM | Hi-BOY, Double acting, motor spool, non-metering airshift, spring return, SAE-16 ports, Plastic Plugged |
PART # | DVA SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|
APG-PRVAC | DV-PRVAC | Port Relief Valve with AC, screw adjustable 500-5000PSI (factory set 2500PSI@10GPM) |
APG-PRVS-1 | DV-PRVS-1 | Port Relief, Screw Adjustable 500- 1000 psi (set @ 750 psi) |
APG-PRVS-2 | DV-PRVS-2 | Port Relief Valve, Screw Adjustable 1000-2500 psi (set @ 1250 psi) |
APG-PRVS-3 | DV-PRVS-3 | Port Relief, Screw Adjustable 2500- 3500 psi (set @ 2000 psi) |
APG-PRVP | DV-PRVP | Work Port Relief Valve plug |
APG-PRV-1 | DV-PRV-1 | Port Relief, Shim Adjustable 500- 1000 psi Set @ 1000 psi |
APG-PRV-2 | DV-PRV-2 | Port Relief Valve, Shim Adjustable 1000-2500 psi Set @ 2000 psi |
APG-PRV-3 | DV-PRV-3 | Work Port Relief, Shim Adjustable, 2500-3500 psi Set @ 2500 psi |
APG-PRV-SK | DV-PRV-SK | Port Relief Valve Shim Kit |
PART # | DVA SERIES PRODUCT CODE | DVG SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|---|
APG35-CFA-80 | DVA35-CFA80 | DVG35-CFA80 | Mid Inlet Combined Flow SAE-16 top port (without relief) |
APG35-CFA-40 | DVA35-CFA40 | DVG35-CFA40 | Mid Inlet Combined Flow 1" NPT top port (without relief) |
PART # | DVA SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|
APG35-SK-1 | DVA35-SK-1 | Blind Hole Stud Kits, 1 work section |
APG35-SK-2 | DVA35-SK-2 | Blind Hole Stud Kits, 2 work section |
APG35-SK-3 | DVA35-SK-3 | Blind Hole Stud Kits, 3 work section |
APG35-SK-4 | DVA35-SK-4 | Blind Hole Stud Kits, 4 work section |
APG35-SK-5 | DVA35-SK-5 | Blind Hole Stud Kits, 5 work section |
APG35-SK-6 | DVA35-SK-6 | Blind Hole Stud Kits, 6 work section |
APG35-SK-7 | DVA35-SK-7 | Blind Hole Stud Kits, 7 work section |
APG35-SK-8 | DVA35-SK-8 | Blind Hole Stud Kits, 8 work section |
PART # | DVA SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|
APG35-H-4 | DV35-H-4 | 8" standard Handle |
APG35-H-8 | DV35-H-8 | 8" H style Handle For High Boy |
APG35-H-10 | DV35-H-10 | 10" H style Handle For High Boy |
PART # | DVA SERIES PRODUCT CODE | DESCRIPTION |
|---|---|---|
APG35-K-11 | DV35-K11 | Assembly Kit = For seals between sections only |
APG35-K-12 | DV35-K-12 | Repair Kit = For section seals, spool seals and back up rings, load check seal |
APG35-K-200 | DV35-K-200 | Spring Center Kit |
APG35-K-201 | DV35-K-201 | Detent Kit |
APG35-K-209 | DV35-K-209 | Hydraulic Pilot kit |
C-3835-DM | DV35-K-213 | Metering Air Shift Kit |
C-3535-DM | Non Metering Air Shift Kit |
