- Interchangeable with the very popular V20 series hydraulic valve

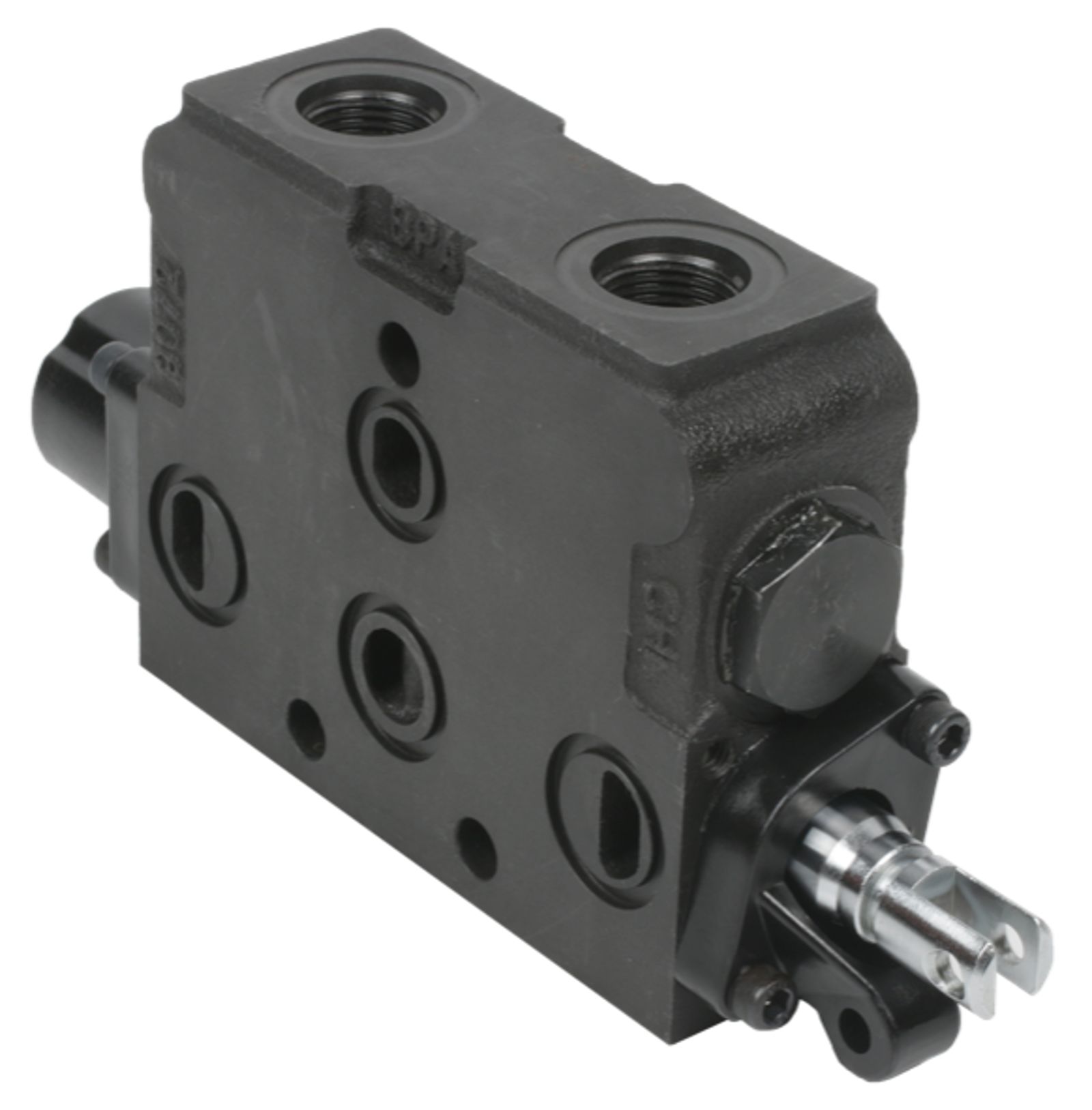

- The APV 20 Series has a nominal capacity of 25gpm and a max operating pressure of 3500PSI.
- The compacted graphite high strength iron alloy construction provides higher durability, shock load resistance allows for a max operating pressure of 3500PSI
- Available in individual components or we can build you a custom engineered and tested valve assembly
- Available in standard SAE porting
- Black phosphate finish for improved paint adhesion and reduction of surface rust
- 100% factory tested
- Compacted graphite high strength iron alloy for shock load resistance and higher pressure needs
- Full flow relief valves and low open center pressure drop
- Parallel circuit design permits all spools to be operated independently or simultaneously with the lightest load receiving priority
- Precision machined spools are hard chrome plated for maximum life and corrosion resistance
- Stackable sectional design allows for customizing the assembly to your specific needs
- Work sections are 100% pre-assembled and pre-tested before shipping
providing flexibility for all your design needs - Black phosphate finish for improved paint adhesion and reduction of surface rust
Technical data - Directly interchangeable with the popular V20 hydraulic valve product lines.
- Available in individual components or we can build you a custom engineered and tested valve assembly
Design Type: Sectional
Circuit: Parallel/Open Center
Material: Compacted Graphite cast iron, a High Strength Iron Alloy
Capacity: 25 GPM nominal / 30 GPM Maximum
Max. System Pressure: 3500 psi – using SAE porting
Relief Valves
- Inlet Main Relief Valve – Screw adjustable with pressure ranges settings from 500-3500 psi
- Work Section Port Relief Valves – fixed pressure range settings from 500 – 2550 psi
APSCO PART # | COMPONENT | GRESEN PRODUCT CODE | GRESEN PART # | PRODUCT CODES | DESCRIPTION |
|---|---|---|---|---|---|
APV-20-LC-12 | INLET | 8398 | 20-LC-12 | Inlet SAE-12 top and side ports nwithout relief | |
APV-RP51A-3000 | MAIN RELIEF | RP51-A | 8950005 | RP51A-3000 | Inlet relief 500-3500PSI Screw Adjustable nSet @ 3000 psi |
APV-20-K-NR | MAIN RELIEF | CK-6132 | 12797001 | K-20-NR | Relief Plug |
APV-20-RC-12-E | OUTLET | 20-RC-12-E | SAE 12 end outlet, 7770 housing | ||
APV-20-RC-12-EM | OUTLET | 6770 | 20-RC-12-E-MY | SAE 12 end outlet, Machined for end power beyond | |
APV-20-12-Y | OUTLET | K-6168 | 12748001 | K-20-12-Y | SAE 12 power beyond sleeve |
APV-20-10-03 | WORK SECTION | 20-10-03 | SA, CS, SR, SAE 10 ports, 3-way/3-position | ||
APV-20-10-04 | WORK SECTION | 20-10-04 | DA, CS, SR, SAE 10 ports, 4-way/3-position | ||
APV-20-10-F4 | WORK SECTION | 20-10-F4 | DA, MS, SR, SAE 10 ports, 4-way/3-position | ||
APV-20-10-F4-M | WORK SECTION | WS (V20) - DA, MS, SR, SAE-10, M (Metering Airshift) | |||
APV-20-10-F4-NM | WORK SECTION | WS (V20) - DA, MS, SR, SAE-10, NM (Non-Metering Airshift) | |||
APV-20-10-DF4 | WORK SECTION | 20-10-DF4 | DA, MS, 3D, SAE 10 ports, 4-way/3-position Detent | ||
APV-20-CRA-1200 | PORT RELIEF | CRA-1200 | PRV with AC, shim adjustable 500-1249PSI (factory set at1200PSI) | ||
APV-20-CRA-1700 | PORT RELIEF | CRA-1700 | PRV with AC, shim adjustable 1250 - 1749PSI (factory set at 1700PSI) | ||
APV-20-CRA-1950 | PORT RELIEF | CRA-1950 | PRV with AC, shim adjustable 1750-1999PSI (factory set at 1950PSI) | ||
APV-20-CRA-2550 | PORT RELIEF | CRA-2550 | PRV with AC, shim adjustable 2000-2599PSI (factory set at 2550 PSI) | ||
APV-20-K-CP | PORT RELIEF | Load-check Assembly | |||
APV-20-CRA-SK | PORT RELIEF | Port Relief Ship Kit | |||
APV-20-VH-B | HANDLE | K-20-VH-B | Verticle Handle (Black) | ||
APV-20-HH-B | HANDLE | K-20-HH-B | Horizontal Handle (Black) | ||
APV-20-BOOT | HANDLE | Spool Boot Assembly | |||
APV-20-SK-1 | STUD KIT | K-6104 | 12807001 | K-20-1 | Stud Kit 1 work section |
APV-20-SK-2 | STUD KIT | K-6105 | 12808001 | K-20-2 | Stud Kit 2 work section |
APV-20-SK-3 | STUD KIT | K-6106 | 12809001 | K-20-3 | Stud Kit 3 work section |
APV-20-SK-4 | STUD KIT | K-6107 | 12810001 | K-20-4 | Stud Kit 4 work section |
APV-20-SK-5 | STUD KIT | K-6108 | 12811001 | K-20-5 | Stud Kit 5 work section |
APV-20-SK-6 | STUD KIT | K-6109 | 12812001 | K-20-6 | Stud Kit 6 work section |
APV-20-SK-7 | STUD KIT | K-6110 | 12813001 | K-20-7 | Stud Kit 7 work section |
APV-20-SK-8 | STUD KIT | K-6111 | 12814001 | K-20-8 | Stud Kit 8 work section |
APV-20-K-D | POSITIONER | K-20-D | 3-position Detent Kit | ||
APV-20-K-SR | POSITIONER | Spring Return to Neutral Kit | |||
C-3826-DM | ACTUATOR | N/A | Metering Air Shift Kit | ||
C-3526-DM | ACTUATOR | N/A | Non-Metering Air Shift Kit | ||
APV-20-K-S1 | SEAL KIT | K-6121 | Open Center Section Seal Kit, 4 pcs | ||
APV-20-K-S3 | SEAL KIT | Standard Section Repair Seal Kit, Includes: 4 Assembly Seal+2 Spool Seals + 2 Spool Seal Backup Washers | |||
APV-20-K-S4 | SEAL KIT | Standard Load Check Assembly Seals Includes: 3 O-Rings + 3 Backup Rings | |||
APV-20-CK-6015 | CLOSED CENTER | K-20-C | Closed Center Plug |
