LLSV Air Valves Load Lock Systems

2-position valve, with one input by the operator.

TECHNICAL

MATERIALS

Compact design, operates and sequences both tailgate latch and high lift cylinders
Simplified operation – Operate both lift and latch functions from a single operator input
May be operated from the cab and manually from the valve
Easy installation means fewer fittings, reduced plumbing, less labor during installation
Ports are marked directly on valve body for easy identification during installation
Designed and manufactured for the mobile equipment market
Available options include: Electric or air control, manual override

Watch Video APSCO Airshift Comparison

PART #	DESCRIPTION	ACTION	PORT	BODY WIDTH	BODY LENGTH	DEPTH	SUPPLY	CYL. TYPE	SUPPORT	IMAGE
LLSV-1-E	Lift-Latch Sequence Valve	Solenoid w / manual override	1/4"	2.5"	6.5"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure
LLSV-1-E-A	Lift-Latch Sequence Valve	Solenoid w / manual override, Elbow Fittings	1/4"	2.5"	6.5"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure
LLSV-1-AP	Lift-Latch Sequence Valve	Air pilot w / manual override	1/4"	2.5"	6.5"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure
LLSV-1-AP-A	Lift-Latch Sequence Valve	Solenoid w / manual override, Elbow Fittings	1/4"	2.5"	6.5"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure
LLSV-2-E	Lift-Latch Sequence Valve	Solenoid	1/4"	2.5"	5.2"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure
LLSV-2-AP	Lift-Latch Sequence Valve	Air pilot	1/4"	2.5"	5.2"	2.5"	130	Hi-lift / Latch	Port Info & Dimensions	Brochure

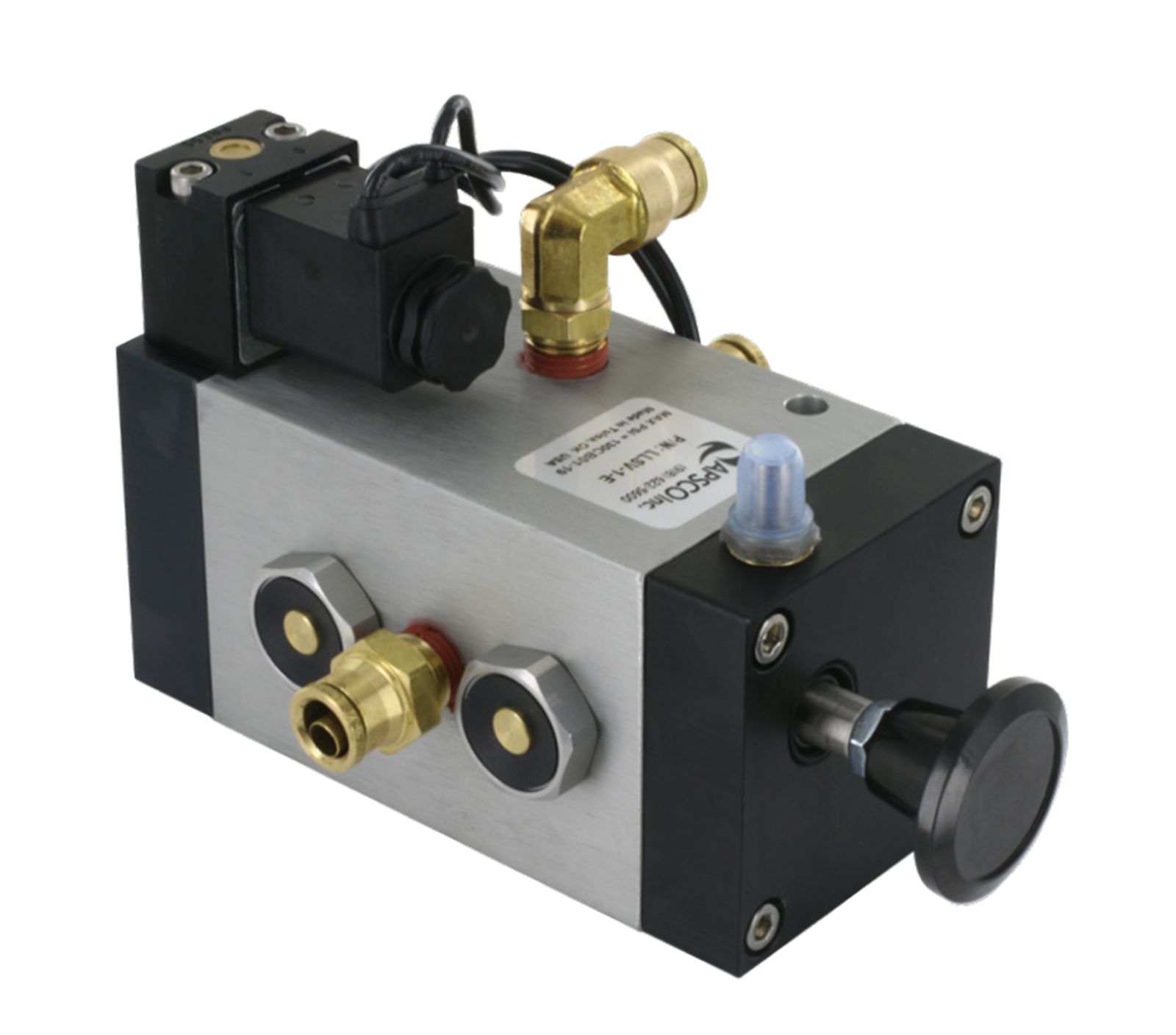

LLSV-Series Tailgate Sequence Valve
