VM Series Console Control Kits | APSCO

Continuous Connection Technology

These kits are used when building a VM Series Single Axis Multibank valve assembly and during installation of a Multibank assembly into a console or pedestal assembly.

PART #	DESCRIPTION	TUBES (15 ft)	ELBOW FITTINGS (PART# 3760)	STRAIGHT FITTINGS (PART# 4361)
TF-79	TUBING KIT 1-BANK VM SERIES	4	2	2
TF-80	TUBING KIT 2-BANK VM SERIES	6	2	4
TF-81	TUBING KIT 3-BANK VM SERIES	8	2	6
TF-82	TUBING KIT 4-BANK VM SERIES	10	2	8

PART #	DESCRIPTION	TUBES (15 ft)	ELBOW FITTINGS (PART# 3760)
TF-71	TUBING KIT 1-BANK VM SERIES	4	4
TF-70	TUBING KIT 2-BANK VM SERIES	6	6
TF-64	TUBING KIT 3-BANK VM SERIES	8	8
TF-65	TUBING KIT 4-BANK VM SERIES	10	10
TF-66	TUBING KIT 5-BANK VM SERIES	12	12
TF-67	TUBING KIT 6-BANK VM SERIES	14	14
TF-68	TUBING KIT 7-BANK VM SERIES	16	16
TF-69	TUBING KIT 8-BANK VM SERIES	18	18

PART #	DESCRIPTION	WHERE USED	SUPPORT
RK-1	Filter, Regulator & Lubricator Kit with tube/fittings and Pressure Protection Valve	master kit
RK-4446	Filter, Regulator & Lubricator and mounting bracket	master kit
RK-1600	Regulator Kit with aluminum panel mounting nut	master kit
1600	Regulator less mounting nut (1/8 NPT)	RK-1600
4428	Aluminum nut for panel mounting regulator p/n 1600	RK-1600	Drawing

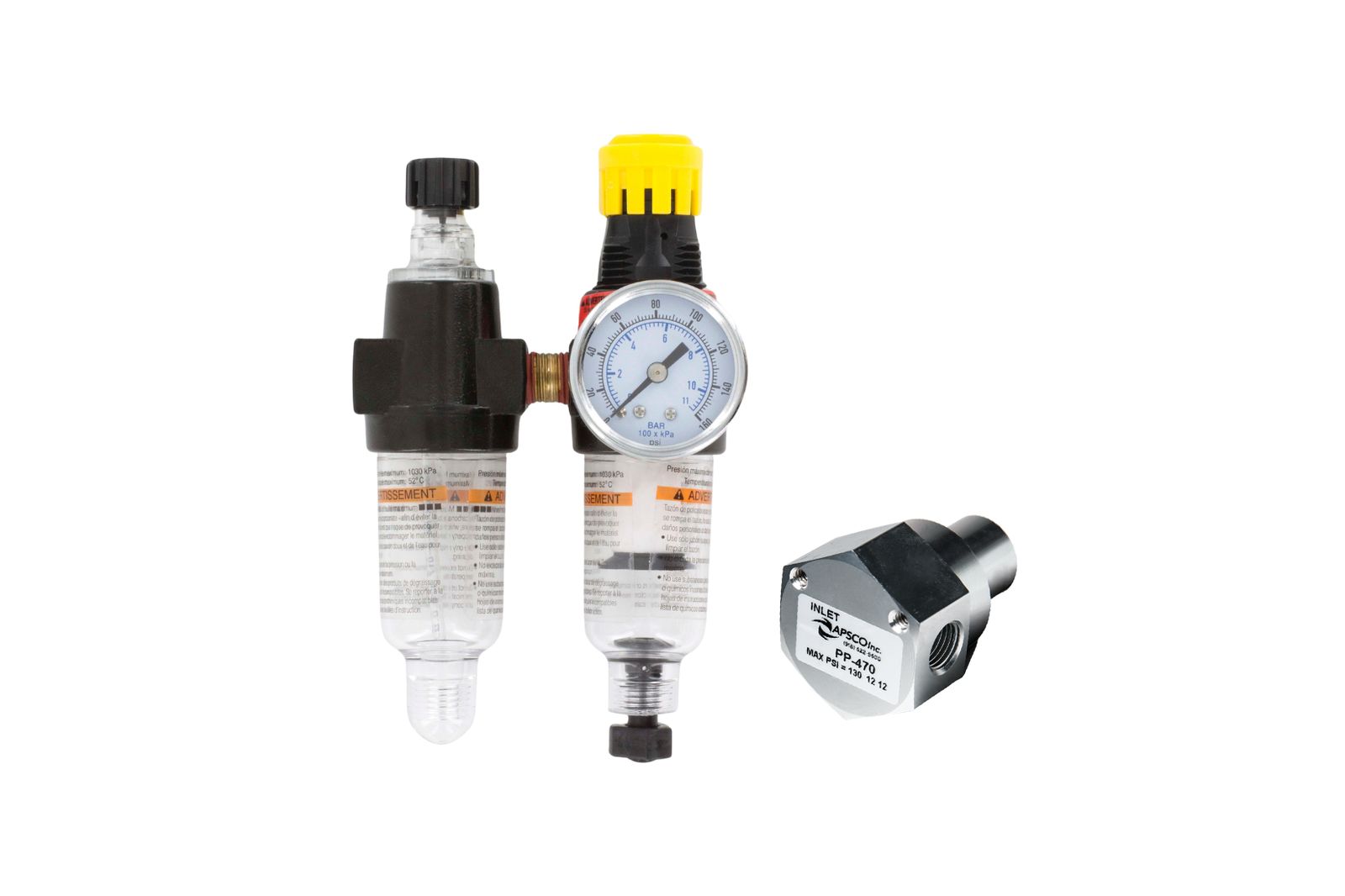

4446	Filter, Regulator & Lubricator (FRL - 1/8 NPT)	RK-1 / RK-4446	Image
1599	Mounting Bracket for FRL (p/n 4446) or Regulator (p/n 1600)	RK-1 / RK-4446
PP-470	Pressure Protection Valve (65 psi shut-off)	RK-1	Image
