- High tensile steel rods – plated for corrosion resistance for years of service-free operation
- Manufactured in the USA – highest quality assured
- Lightweight design – allows greater payload
Standard, Twin, or Round
STANDARD
APSCO air cylinders offer a variety of solutions for your dump trailer or dump body’s high lift tailgate needs. Designed for the truck and mobile equipment industries, rod wipers come standard on every high lift cylinder; as well as bearing blocks on the longer strokes. Choose the same high lift cylinder chosen by dump body manufacturers all over the world, APSCO high lift. APSCO valve and fitting kits are available for all cylinders, making installation efficient and easy.

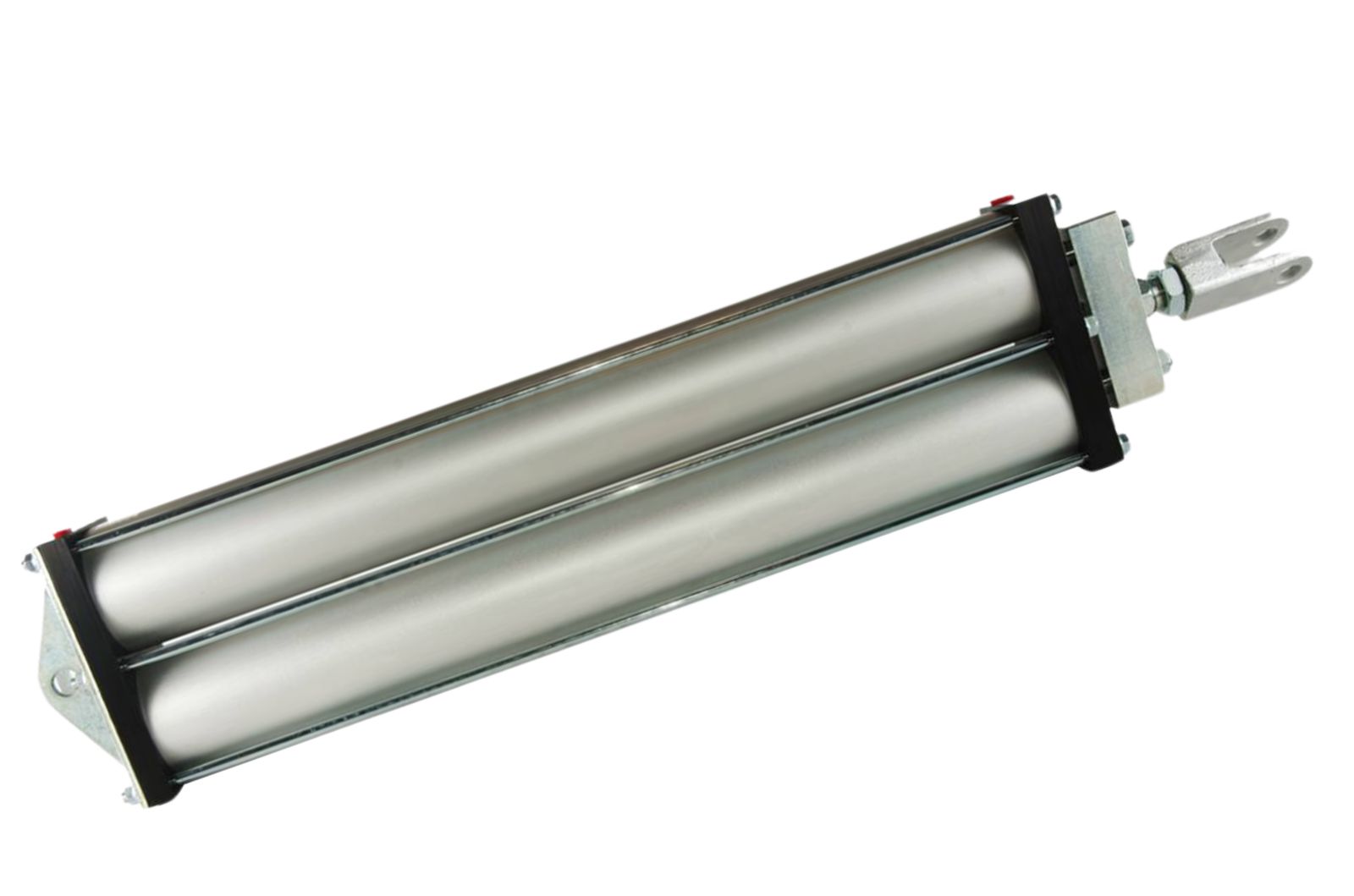

TWIN (pictured)
In the past, dump bodies with higher sides and gates had to sacrifice bed width to accommodate the larger cylinders needed to lift the gate while staying within DOT regulations. APSCO engineers applied experience and innovation to provide a solution to the problem while remaining cost-effective. Our twin high lift cylinder provides all the necessary force required for taller gates while fitting in a footprint that is 4” wide.
ROUND
Our round cylinder design was developed in response to OEM initiatives to make trailer and body designs lighter. Our innovative design eliminates traditional tie rods and end caps resulting in weight savings of up to 60% of traditional designs.
CYL PART # |
DESCRIPTION |
CYLINDER TYPE |
BORE |
STROKE |
PORT |
P-ROD THREAD |
FORCE @ 100 PSI |
SEAL KIT # |
SUPPORT |
|---|---|---|---|---|---|---|---|---|---|
C-0416-PK-1 |
CYL 4 X 16 1 PK |
Aluminum Round |
4.00" |
16.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-6224-PK-M |
CYL 3.5 X 24 DA 16 BR PK |
Tie Rod - Twin Cyl |
Twin 3.50" |
24.00" |
3/8 NPT |
1-14 |
1924 LBS |
SK-4974 | |
C-7402-B-PK |
CYL 4 X 20 DA 16 BR PK BE |
Tie Rod |
4.00" |
20.00" |
1/4 NPT |
1-14 |
1257 LBS |
SK-3968 | |
C-7402-PK |
CYL 4 X 20 DA 16 BR PK |
Tie Rod |
4.00" |
20.00" |
1/4 NPT |
1-14 |
1257 LBS |
SK-3968 | |
C-7421-PK-M |
CYL 4 X 20 DA 16 BR PK |
Tie Rod |
4.00" |
20.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-0424-PK |
CYL 4 x 24 16 BR PK |
Aluminum Round |
4.00" |
24.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0424-PK-1 |
CYL 4 x 24 16 BR 1 PK |
Aluminum Round |
4.00" |
24.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-7404-PK |
CYL 4 X 24 DA 16 BR PK |
Tie Rod |
4.00" |
24.00" |
1/4 NPT |
1-14 |
1257 LBS |
SK-3968 | |
C-7424-B |
CYL 4 X 24 DA 16 BR BE |
Tie Rod |
4.00" |
24.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-7424-PK |
CYL 4 X 24 DA 16 BR PK |
Tie Rod |
4.00" |
24.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-7424-PK-M |
CYL 4 X 24 DA 16 BR PK |
Tie Rod |
4.00" |
24.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-7426-PK |
CYL 4 X 26 DA 16 BR PK |
Tie Rod |
4.00" |
26.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-0426-PK-1 |
CYL 4 X 26 1 PK |
Aluminum Round |
4.00" |
26.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0427-PK-1 |
CYL 4 X 26 1 PK |
Aluminum Round |
4.00" |
26.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0428-FC |
CYL 4 x 28 FC |
Aluminum Round |
4.00" |
28.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0429-FC-PK-1 |
CYL 4 x 29 FC 1 PK |
Aluminum Round |
4.00" |
28.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0430-PK |
CYL 4 x 30 PK |
Aluminum Round |
4.00" |
30.00" |
1/2 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0430-PK-1 |
CYL 4 x 30 1 PK |
Aluminum Round |
4.00" |
30.00" |
1/2 NPT |
1-14 |
1257 LBS |
SK-5361 | |
C-0431-PK-1 |
CYL 4 x 30 1 PK |
Aluminum Round |
4.00" |
30.00" |
1/2 NPT |
1-14 |
1258 LBS |
SK-5361 | |
C-7403-PK |
CYL 4 X 30 DA 16 BR PK |
Tie Rod |
4.00" |
30.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-7436 |
CYL 4 X 36 DA 16 BR |
Tie Rod |
4.00" |
36.00" |
3/8 NPT |
1-14 |
1257 LBS |
SK-3909 | |
C-8020-A-PK |
CYL 5 X 20 DA 16BR ALUMINUM |
Tie Rod |
5.00" |
20.00" |
3/8 NPT |
1-14 |
1962 LBS |
SK-4009 | |
C-8120-B-PK |
CYL 5 X 20 DA 16 BE PK |
Tie Rod |
5.00" |
20.00" |
3/8 NPT |
1-14 |
1963 LBS |
SK-4009 | |
C-8120-PK |
CYL 5 X 20 DA 16 BR PK |
Tie Rod |
5.00" |
20.00" |
3/8 NPT |
1-14 |
1962 LBS |
SK-4009 | |
C-8120-PK-M |
CYL 5 X 20 DA 16 BR PK |
Tie Rod |
5.00" |
20.00" |
3/8 NPT |
1-14 |
1963 LBS |
SK-4009 | |
C-8120-PK-1 |
CYL 5 X 19.7 DA 16BR 1 PK |
Tie Rod |
5.00" |
20.00" |
3/8 NPT |
1-14 |
1964 LBS |
SK-4009 | |
C-8024 |
CYL 5 X 24 DA 16 BR |
Tie Rod |
5.00" |
24.00" |
3/8 NPT |
1-14 |
1963 LBS |
SK-4009 | |
C-8028 |
CYL 5 X 28 DA 16 CL |
Tie Rod |
5.00" |
28.00" |
3/8 NPT |
1-14 |
1963 LBS |
SK-4009 | |
C-8030-PK |
CYL 5 X 30 DA 16 CL PK |
Tie Rod |
5.00" |
30.00" |
3/8 NPT |
1-14 |
1963 LBS |
SK-4009 |
Highlift Cylinder Parts Key |
|---|
1 = 1.0" Pins |
